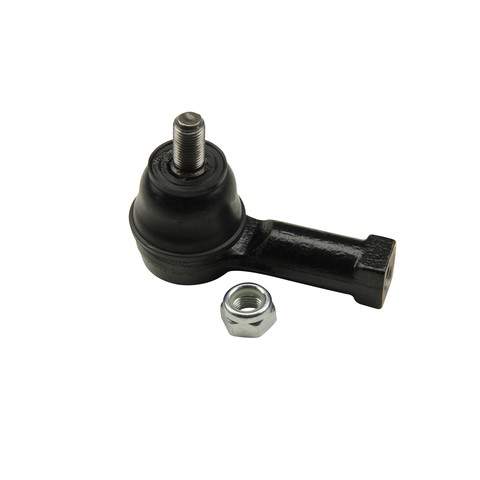

MOOG Chassis ES800874 front outer tie rod end for the 2003-2006 Mitsubishi Lancer and other vehicles connects the inner tie rod to the steering knuckle, so steering input turns the wheel.
- QuickSteer chassis part, designed and tested to restore steering and handling
- Forged alloy steel construction for durability
- Dust boot keeps out contaminants
- Precision tolerances for easy installation and steering alignment
- Tested by MOOG engineers throughout design and development
Quick facts
- Part: MOOG Chassis ES800874 tie rod end
- Also called: steering tie rod end
- Fits: 2003-2006 Mitsubishi Lancer and other vehicles
- Position: Front outer
- Material: Forged alloy steel
- Condition: New
Loose or wandering steering, uneven front tire wear or vibration can mean a steering tie rod end is worn, though other steering and suspension parts can show up in the same way. With the engine off, look at the boot and joint for a tear or leaking grease; any play in the joint is something a shop should measure before you replace anything. The front axle has one on each side.
Fits
This tie rod end fits the 2003-2006 Mitsubishi Lancer and the 2003-2006 Mitsubishi Outlander, and is designed for OE fit and function. This listing is one tie rod end; the other side of the front axle is normally done at the same time.
Specifications
Fit and size
- Position: Front outer
- Quantity per vehicle: 2, one per side of the axle
- End 1 thread: female, clockwise, 14.0 mm diameter, 1.5 mm pitch
- End 2 thread: 12.0 mm diameter, 1.25 mm pitch
Build and materials
- Type: Straight
- Material: Forged alloy steel
- Dust boot: Included
- Condition: New
In the box
One tie rod end with its dust boot.
Interchange: 101-7295 · 539-054
TA5014 · ER03051 · TO67075 · ES3616 · MS80603 · 4422A02 · 2694064
This part cross-references / interchanges with the following part numbers:
101-7295, TA5014, 539-054, ER03051, TO67075, ES800874, ES3616, MS80603, 4422A02, 2694064
Frequently Asked Questions
Is the ES800874 a Mitsubishi Lancer tie rod for 2003-2006 models?
Yes. MOOG Chassis ES800874 is a front outer tie rod end that fits the 2003-2006 Mitsubishi Lancer, with a quantity of two per vehicle, one on each side of the axle.
Is the ES800874 an Outlander tie rod end for 2003-2006 models?
Yes. This front outer tie rod end fits the 2003-2006 Mitsubishi Outlander as well, with one on each side of the front axle.
What thread sizes does the MOOG ES800874 tie rod end have?
End 1 is a female clockwise thread, 14.0 mm in diameter with a 1.5 mm pitch. End 2 is 12.0 mm in diameter with a 1.25 mm pitch.
Does this front outer tie rod end come with a dust boot?
Yes. MOOG Chassis ES800874 includes the dust boot, which keeps contaminants out of the joint.
How can I tell if a front outer tie rod end is worn?
Looseness or wander in the steering, uneven tire wear, or a torn boot with grease leaking out can point to a worn joint. A shop can test the play safely.
