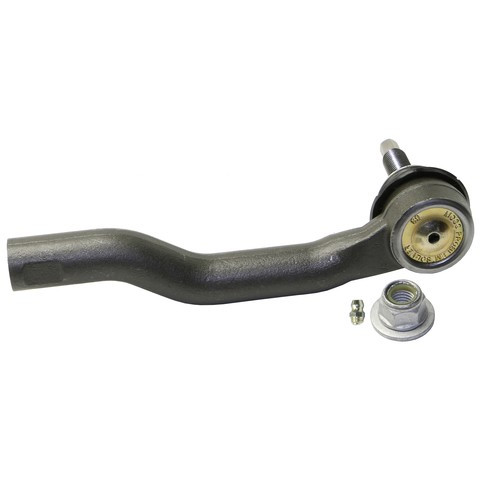

Sharpen a loose, wandering Ford Fusion tie rod feel with the MOOG Steering Tie Rod End ES801109, a front right outer unit that connects the steering linkage to the knuckle and transmits steering input to the wheel. It installs as a direct-fit replacement for the 2013-2020 Ford Fusion, 2015-2023 Ford Edge, 2017-2020 Lincoln Continental, 2016-2018 Lincoln MKX, and 2013-2020 Lincoln MKZ.
Greaseable socket: allows new lubricant to flush out contaminants, reducing corrosion and wear.
Problem Solver gusher bearing: a metal-to-metal design that lets grease flow through the bearing surface for reduced friction and long life.
Belleville preload washer: helps keep the bearing package tight as bearings wear and absorbs impact.
Pressed-in cover plate: patented seal that keeps out debris and minimizes looseness for reduced bearing wear.
The ball studs are heat treated to match or exceed OE requirements to improve fatigue strength, and the part is coated for corrosion resistance. Designed for OE fit and function, it arrives at precision tolerances for straightforward installation and steering alignment. If a worn outer tie rod end is behind play in your steering, this replacement helps restore vehicle handling.
Interchange: 310-507758 · 612.61086 · 544-558
310507758 · 61261086 · 544558 · 45A10052 · TA5012 · TA5562 · TO85342XL · TO85282XL · TR281 · DG9Z3A130A · F2GZ3A130A · TO85282 · TO85282G · MS40644 · MS40684 · TXMS40684 · MEF235 · 2693915 · 4012578 · JTE1934
This part cross-references / interchanges with the following part numbers:
Does this fit a 2013 Ford Fusion?
Yes. MOOG ES801109 is listed for the 2013-2020 Ford Fusion. Confirm the front right outer position matches your vehicle before ordering.
What position is this tie rod end?
It is the front right outer steering tie rod end, connecting the steering linkage to the steering knuckle.
Is this tie rod end greaseable?
Yes. It has a greaseable socket that lets fresh lubricant flush out contaminants, helping reduce corrosion and wear.
What are signs my outer tie rod end may need replacing?
Common signs include loose or wandering steering, uneven tire wear, or a clunk when turning. Have the cause diagnosed, as other steering parts can produce similar symptoms.
Will I need an alignment after installing this?
A steering alignment is recommended after replacing a tie rod end. Consult the vehicle service information for the correct procedure and torque specs.
