Front Right Outer Tie Rod End for 2006-2007 Mercedes-Benz C280 & More - MOOG ES801224

$39.99

MOOG Chassis Products Steering Tie Rod End ES801224

MOOG Chassis Products Steering Tie Rod End ES801224 - view 2

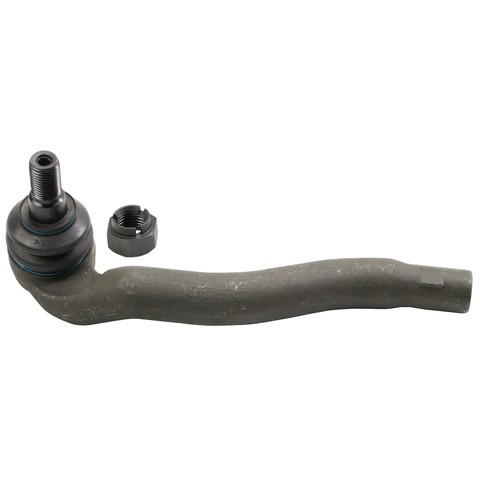

MOOG Chassis Products Steering Tie Rod End ES801224 - view 3

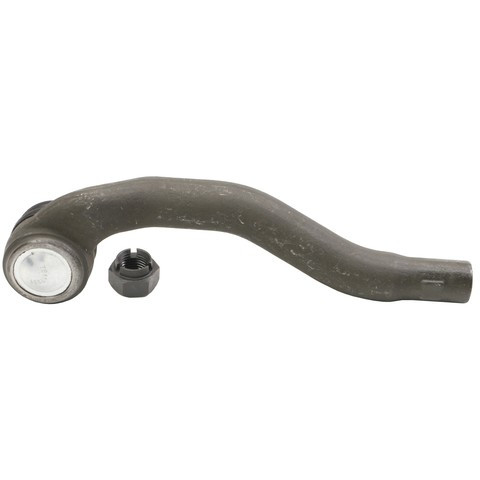

MOOG Chassis Products Steering Tie Rod End ES801224 - view 4

Part number: ES801224

UPC: 080066697628

Condition: New

Weight: 2.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$39.99

Current Stock: 9

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

MOOG Chassis Products Steering Tie Rod End P/N:ES801224

$39.99

Description

MOOG Chassis Products ES801224 front right outer tie rod end for the 2006-2007 Mercedes-Benz C280 and other vehicles passes steering input from the steering linkage to the front wheel.

Design enhancements aimed at longer product life and simpler installation and replacement
Intended to restore like-new steering and handling
Coated for corrosion resistance
Construction and design validated by MOOG engineers
Any necessary hardware is included

Quick facts

Part: MOOG Chassis Products ES801224 tie rod end
Also called: steering tie rod end
Fits: 2006-2007 Mercedes-Benz C280 and other vehicles
Position: Front right outer
Condition: New

Loose steering feel and premature tire wear can mean this tie rod end is worn, though a worn ball joint or control arm bushing can be behind them too. Both sides are normally replaced together, but this listing is one end for the front right outer position; the front left is ordered separately.

Fits

The vehicles it fits include the 2006-2007 Mercedes-Benz C280, the 2006-2007 Mercedes-Benz C350 and the 2003-2005 Mercedes-Benz C240, and a single one goes on the front right side.

Specifications

Fit and size

Position: Front right outer
Quantity per vehicle: 1
End 1 thread: female, 14 mm diameter, 1.5 mm pitch
End 2 thread: 14 mm diameter, 1.5 mm pitch

Build and materials

Type: Straight
Coating: corrosion-resistant
Condition: New
Country of origin: China

In the box

One tie rod end with any necessary hardware.

Interchange: 534-993 · 544-008
1017661 · 6123506 · TA2787 · TO28212PR · ER19191 · TO28212 · 2033303403 · MS106133 · 2693998

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

1017661, 6123506, TA2787, 534-993, 544-008, TO28212PR, ER19191, TO28212, 2033303403, MS106133, 2693998

Buyer's Q&A

Frequently Asked Questions

Does the MOOG ES801224 tie rod end fit the 2006-2007 Mercedes-Benz C280?

Yes. MOOG Chassis Products ES801224 fits the 2006-2007 Mercedes-Benz C280 on the front right outer side. If your car is a different one, look for it in the "Vehicles it fits" section on this page.

Does the MOOG ES801224 tie rod end come with its own hardware?

Yes. The listing is one tie rod end for the front right outer position, and any necessary hardware is included with it.

What thread size does this steering tie rod end use?

MOOG ES801224 has a female end 1 with a 14 mm thread diameter and 1.5 mm pitch. End 2 has the same 14 mm diameter and 1.5 mm pitch.

How can I tell a front right outer tie rod end is worn?

Loose steering feel, a car that wanders on the road or uneven tire wear can be signs of a worn end. A shop can inspect the steering linkage for play.

Is 534-993 an interchange number for this MOOG tie rod end?

Yes. 534-993 is one of the numbers this MOOG ES801224 tie rod end replaces, and it appears on the Interchange line.
