Front Right Outer Tie Rod End for 2019-2020 Kia Optima - MOOG ES801689

$44.99
MOOG Chassis Products Steering Tie Rod End ES801689
MOOG Chassis Products Steering Tie Rod End ES801689

Vehicles this part fits
    Part number: ES801689
    UPC: 080066725703
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $44.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    MOOG Chassis Products Steering Tie Rod End P/N:ES801689
    MOOG Chassis Products Steering Tie Rod End P/N:ES801689
    $44.99
    $44.99

    MOOG Chassis Products ES801689 front right outer tie rod end for the 2019-2020 Kia Optima links the steering linkage to the steering knuckle. Also listed as a steering tie rod end, it passes steering input from the inner linkage to the wheel.

    • Problem Solver Gusher Bearing: metal-to-metal design lets grease flow through the bearing surface to reduce friction
    • Heat-treated ball studs to inhibit premature failure and improve fatigue strength
    • Greaseable socket that lets new lubricant flush out contaminants, reducing corrosion and wear

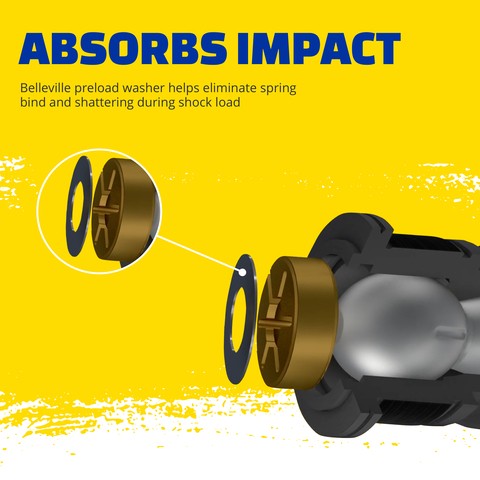

    • Belleville preload washer that helps keep the bearing package tight as the bearings wear
    • Patented pressed-in cover plate that seals out debris and minimizes looseness
    • Precision tolerances for easy installation and steering alignment

    Quick facts

    • Part: MOOG Chassis Products ES801689 tie rod end
    • Also called: steering tie rod end
    • Fits: 2019-2020 Kia Optima
    • Position: Front right outer
    • Condition: New

    Uneven tire wear, loose or wandering steering, or a clunk over bumps can come from a worn tie rod end, but worn tires or other steering and suspension parts may show up the same way. Before replacing anything, look over the tire tread for uneven wear, and leave the steering play test to a shop, since it needs the vehicle raised.

    Fits

    This tie rod end fits the front right outer position on the 2019-2020 Kia Optima. The front axle takes one on each side. This listing is one side; the left side of that axle is a separate part and is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front right outer
    • Quantity per application: 1
    • Sold as: one tie rod end

    Build and materials

    • Bearing: Problem Solver Gusher Bearing, metal-to-metal
    • Ball studs: heat treated
    • Socket: greaseable
    • Condition: New
    • Country of origin: Mexico

    Interchange: 544-234
    56825C1710

    This part cross-references / interchanges with the following part numbers:

    544-234, 56825C1710

    Frequently Asked Questions

    Is this a tie rod replacement for the 2019-2020 Kia Optima?

    Yes. MOOG Chassis Products ES801689 is the front right outer tie rod end for the 2019-2020 Kia Optima. The left side of the axle takes its own part.

    Does the MOOG ES801689 tie rod end have a greaseable socket?

    Yes. The socket is greaseable, so new lubricant can flush out contaminants, which reduces corrosion and wear.

    What is the Problem Solver Gusher Bearing in this tie rod end?

    It is a metal-to-metal bearing design that lets grease flow through the bearing surface to reduce friction. A Belleville preload washer helps keep the bearing package tight as the bearings wear.

    How can I tell if a front right outer tie rod end is worn?

    Uneven tire wear, loose or wandering steering, or a clunk over bumps can mean a worn tie rod end. A shop can measure the play in the joint.

    Does this tie rod end interchange with 56825C1710?

    Yes. 56825C1710 is listed as an interchange number for MOOG Chassis Products ES801689, as is 544-234.
