Part number:
ES80803
UPC:
080066389349
Condition:
New
Weight:
10.60 LBS
Item Package Code:
EA
Part Has Core (Y/N):
N
Item Package Quantity:
1

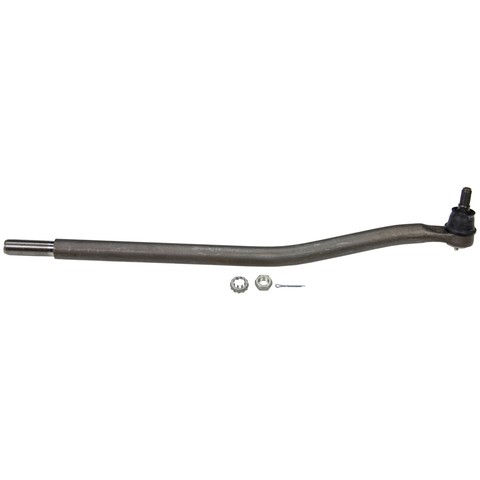

MOOG Chassis Products Steering Tie Rod End P/N:ES80803
$123.99
MOOG Chassis Products ES80803 front right inner tie rod end for the 2003-2004 Ford F-450 Super Duty and other vehicles passes steering input along to the front wheel. Also known as a steering tie rod end, it is a joint in the steering linkage that keeps the wheel following the steering wheel.
- Precision tolerances for easy installation and steering alignment
- Tested by MOOG engineers throughout design and development
- MOOG problem-solving design aimed at fast installation
Quick facts
- Part: MOOG Chassis Products ES80803 tie rod end
- Also called: steering tie rod end
- Fits: 2003-2004 Ford F-450 Super Duty and other vehicles
- Position: Front right inner
- Condition: New
Loose or wandering steering, uneven front tire wear and clunking when turning can mean this inner tie rod end is worn, though a worn outer tie rod end or worn ball joints can be behind them too, so pin down the cause before replacing anything.
Fits
It fits the 2003-2004 Ford F-450 Super Duty and the 2003-2004 Ford F-550 Super Duty. This listing is one tie rod end for the front right inner position; the front left is a separate part, and the two sides of the front axle are normally done at the same time.
Specifications
Fit and size
- Position: Front right inner
- Quantity per vehicle: 1
- Thread diameter: 1.000 in
- Threads per inch: 16
- Thread direction: Counterclockwise
Build and materials
- Type: Bent
- Rod type: Male
- Condition: New
- Country of origin: Turkey
In the box
One front right inner tie rod end; the front right takes one. The dust boot is not included.
Interchange: 531-294 · 540-978
3C3Z3304AA · 4C3Z3304BB · 8C3Z3A131J · MES80803 · 2696087
This part cross-references / interchanges with the following part numbers:
531-294, 540-978, 3C3Z3304AA, 4C3Z3304BB, 8C3Z3A131J, ES80803, MES80803, 2696087
Frequently Asked Questions
Does the MOOG ES80803 tie rod end fit the 2003-2004 Ford F-550 Super Duty?
Yes. MOOG Chassis Products ES80803 fits the 2003-2004 Ford F-550 Super Duty as well as the 2003-2004 Ford F-450 Super Duty, in the front right inner position.
Does this ES80803 inner tie rod end come with a dust boot?
No. The dust boot is not included. This listing is one front right inner tie rod end, and that side takes one.
What thread does the MOOG ES80803 tie rod end have?
The MOOG ES80803 has a male end with a 1.000 inch thread diameter, 16 threads per inch and a counterclockwise thread direction.
How can I tell if a front inner tie rod end is wearing out?
A steering wheel that sits off-center, a pull to one side or play felt in the wheel can point to a worn joint. A shop can check the joint for play.
Does the MOOG ES80803 replace number 3C3Z3304AA?
Yes. Number 3C3Z3304AA is one of the numbers this MOOG ES80803 tie rod end replaces.
