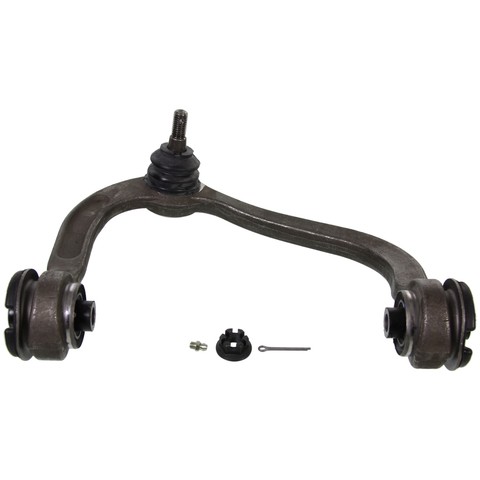

MOOG CK80308 front right upper control arm with ball joint for the 2004-2014 Ford F-150 and other vehicles links the wheel end to the frame and holds the ball joint. This control arm and ball joint assembly arrives with the ball joint and bushings already fitted.
- MOOG High Utilization Design, made for heavier loads and more punishing roads
- Problem Solver Gusher Bearing with a metal-to-metal design that lets grease flow through the bearing surface to reduce friction
- Greaseable socket that lets new lubricant flush out contaminants to reduce corrosion and wear
- Pre-installed dust boot that shields the socket components from wear-causing contaminants
- Belleville preload washer that helps keep the bearing package tight as the bearings wear
- Pre-installed bushings with optimized stiffness to inhibit noise
Quick facts
- Part: MOOG CK80308 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2004-2014 Ford F-150 and other vehicles
- Position: Front right upper
- Material: Forged steel (control arm), rubber (bushings)
- Condition: New
A clunk over bumps, loose-feeling steering or uneven front tire wear can mean a worn bushing or ball joint. Those signs alone don't prove this arm is the problem, since a worn tie rod end can feel much the same. Both front upper arms are normally replaced together, and this listing is one arm for the front right; the front left is a separate part.
Fits
The 2004-2014 Ford F-150, the 2007-2017 Ford Expedition and the 2007-2017 Lincoln Navigator are among the vehicles this MOOG upper control arm fits, and the front right position takes one. If your vehicle isn't named here, find your model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right upper
- Quantity per application: 1 (front right position)
- Control arm maximum length: 13.66 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Forged steel
- Bushing material: Rubber
- Pre-greased: Yes
- Condition: New
- Country of origin: United States
In the box
One front right upper control arm with the ball joint, bushings and mounting hardware. A grease fitting is not included.
Frequently Asked Questions
Is this the front right upper control arm for the 2004-2014 Ford F-150?
Yes. MOOG CK80308 is the front right upper control arm with ball joint for the 2004-2014 Ford F-150. The front left side is a separate part.
Do I need to buy a MOOG control arm bushing separately for this arm?
No. MOOG CK80308 comes with its rubber bushings pre-installed, along with the ball joint and mounting hardware.
Does this MOOG control arm need greasing?
The socket is greaseable so new lubricant can flush out contaminants, and the arm comes pre-greased. MOOG CK80308 does not include a grease fitting.
How do I know if the ball joint or bushings on this front upper arm are worn?
A clunk over bumps, loose steering or uneven front tire wear can be signs. A shop can check ball joint and bushing play safely, so have a suspected worn arm looked at promptly.
What ball joint mounting and stud type does this arm use?
The ball joint is a press-in type with a threaded stud. The arm is not adjustable and measures 13.66 inches at its maximum length.
