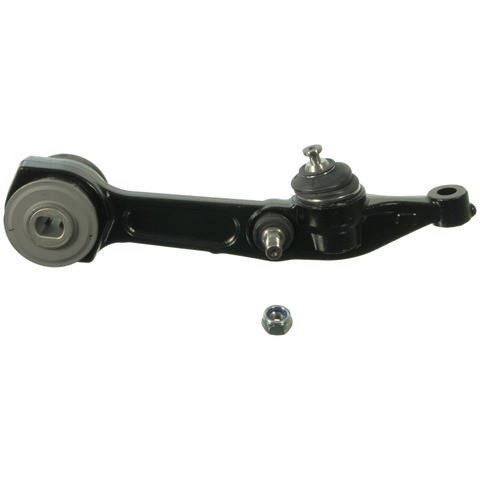

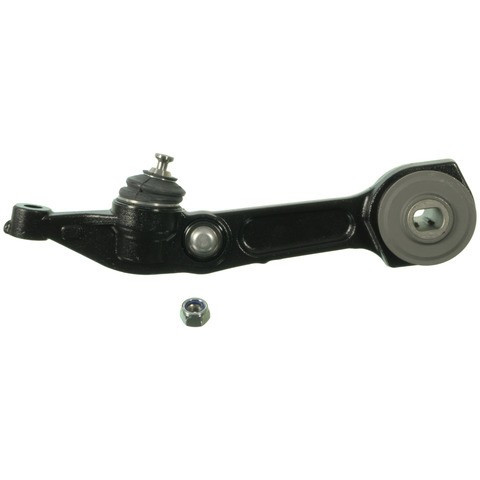

MOOG Chassis Products RK620208 front left lower control arm with ball joint for the 2006 Mercedes-Benz S350 and other vehicles joins the wheel to the chassis and pivots as the suspension moves.
- Forged steel control arm engineered for structural strength
- Rubber bushings for quiet operation and resistance to wear, salt, road grime and oils
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Ball stud shape that ensures fatigue life
- Heat treated to inhibit premature failure
- E-coated control arm and coated studs inhibit premature deterioration
Quick facts
- Part: MOOG Chassis Products RK620208 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: the 2006 Mercedes-Benz S350 and other vehicles
- Position: Front left lower rearward
- Material: Forged steel
- Condition: New
A clunk over bumps, uneven tire wear or a wandering steering wheel can mean this arm, its ball joint or its bushings are worn, though a worn tie rod end or sway bar link can be behind them too, so pin down which part is at fault before ordering.
Fits
It fits the 2006 Mercedes-Benz S350, the 2000-2006 Mercedes-Benz S430 and the 2000-2006 Mercedes-Benz S500. The front left position takes one arm; the front right is a separate part ordered separately, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: front left lower rearward
- Quantity per vehicle: 1 (front left)
- Maximum length: 12.770 inch
- Ball joint mounting type: press-in
- Ball joint stud type: threaded
Build and materials
- Type: control arm with pre-installed ball joint
- Control arm material: forged steel
- Bushing material: rubber
- Adjustable: no
- Pre-greased: yes
- Condition: new
- Country of origin: Turkey
In the box
One control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included.
Installation notes
- The ball joint is pre-installed in the arm and pre-greased.
- Precision tolerances are intended to make installation and steering alignment easier.
Interchange: 622.35037 · 520-979 · 260-5679 · 507-1424
45D3424 · 62335037 · TC1496 · CA4226 · 15TC315 · FCA1115 · 30255 · 4CB10074 · 6CB10515 · CB28293 · FA4575 · 2203302507 · 2203308907 · CMS101212 · CMS10137 · MS101212 · MS10137 · QSJ2108S · 109620208 · JTC1105
This part cross-references / interchanges with the following part numbers:
45D3424, 622.35037, 62335037, TC1496, 520-979, CA4226, 15TC315, FCA1115, 30255, 4CB10074, 6CB10515, CB28293, FA4575, 2203302507, 2203308907, CMS101212, CMS10137, MS101212, MS10137, 260-5679, QSJ2108S, 507-1424, 109620208, JTC1105
Frequently Asked Questions
Does the MOOG RK620208 front left lower control arm fit the 2000-2006 Mercedes-Benz S430?
Yes. MOOG RK620208 is listed for the 2000-2006 Mercedes-Benz S430 in the front left lower rearward position, and it is sold as a single arm.
Does this MOOG control arm and ball joint assembly come with bushings and hardware?
Yes. MOOG RK620208 includes the ball joint, the bushings and mounting hardware. A grease fitting is not included.
Is the ball joint on this front left control arm press-in or bolt-in?
The ball joint mounts as a press-in and has a threaded stud. It comes already installed in the arm, and the bushings are rubber.
Is the ball joint on this MOOG control arm pre-greased?
Yes. The ball joint comes pre-greased in a sealed socket for maintenance-free operation, and no grease fitting is included with the arm.
Does MOOG RK620208 replace part number 2203302507?
Yes. 2203302507 is one of the numbers this MOOG arm replaces. The full cross-reference list is printed at the end of the description.
