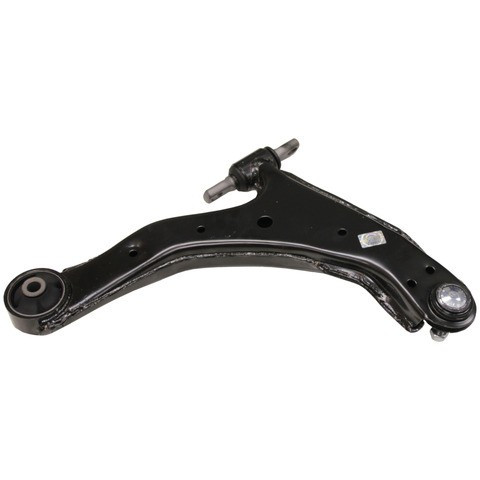

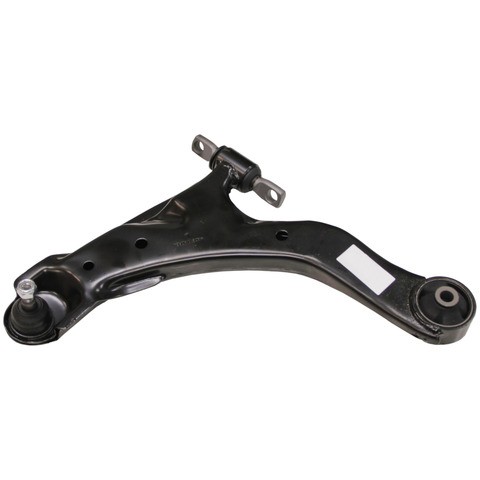

MOOG Chassis Products RK620520 front left lower control arm with ball joint for the 2004-2009 Kia Spectra and other vehicles links the wheel to the chassis. The ball joint lets the steering knuckle pivot while the arm lets the wheel move up and down with the road.
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Optimized rubber bushings for quiet operation and resistance to wear, salt, road grime and oils
- Heat treated to inhibit premature failure
- Stamped steel arm with coated studs to inhibit premature deterioration
- Ball stud shape for fatigue life and added swing
Quick facts
- Part: MOOG Chassis Products RK620520 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2004-2009 Kia Spectra and other vehicles
- Position: front left lower
- Material: Stamped steel
- Condition: New
A clunk over bumps, loose steering or uneven tire wear can mean this arm's bushings or ball joint are worn, though a loose sway bar end link or a tired strut mount can be behind the same symptoms, so find the cause before replacing anything.
Fits
It fits the 2005-2009 Kia SPECTRA5 and the 2003-2008 Hyundai Tiburon as well as the 2004-2009 Kia Spectra. This listing is one arm for the front left; the 2004-2009 Kia Spectra takes one on that corner, and the front right is a separate part that is normally replaced at the same time.
Specifications
Fit and size
- Position: front left lower
- Quantity for this position: 1
- Control arm maximum length: 12.4 in
- Ball joint mounting type: bolt in
- Ball joint stud type: threaded
Build and materials
- Control arm material: stamped steel
- Bushing material: rubber
- Pre-greased: yes
- Condition: new
- Country of origin: China
In the box
One front left lower control arm with its ball joint, bushings and mounting hardware. A grease fitting is not included.
Installation notes
- Installation ready out of the box.
- Precision tolerances are meant to make installation and steering alignment easier.
Frequently Asked Questions
Is this a control arm for the 2003-2008 Hyundai Tiburon?
Yes. MOOG Chassis Products RK620520 fits the 2003-2008 Hyundai Tiburon in the front left lower position. The right side takes its own separate arm.
Will this lower control arm fit a 2005 in the 2003-2008 Hyundai Tiburon range?
Yes. A 2005 falls inside the 2003-2008 Hyundai Tiburon fitment. This arm is for the front left lower position only.
Does this control arm and ball joint assembly include bushings and hardware?
Yes. MOOG RK620520 comes with the ball joint, bushings and mounting hardware. A grease fitting is not included, and the ball joint comes pre-greased.
What are the bushings and arm made of on this front left lower control arm?
The bushings are rubber and the arm is stamped steel. The ball joint bolts in and has a threaded stud, and the arm's maximum length is 12.4 inches.
What are the signs of a worn lower control arm on the front left?
Cracked or torn rubber bushings, a clunk over bumps or loose steering feel can mean the arm is worn. Cracks and torn rubber can be seen with the car parked; a shop can check ball joint play.
