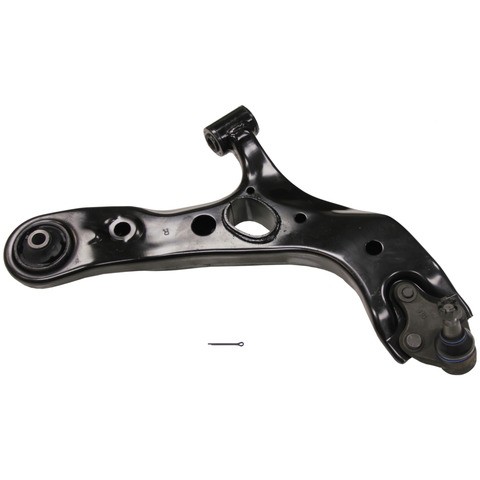

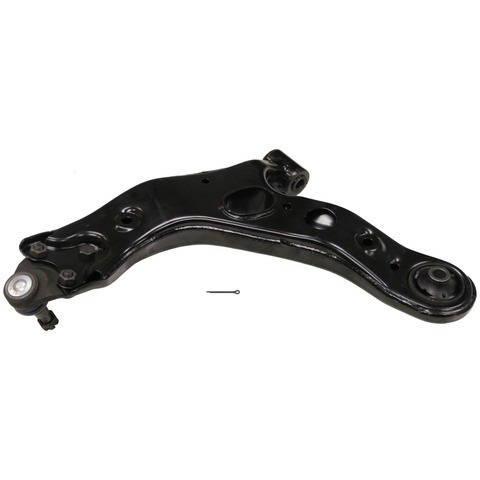

MOOG RK620587 front right lower control arm with ball joint for the 2006-2018 Toyota RAV4 and other vehicles locates the front right wheel and lets it move with the suspension. The bushings and ball joint come pre-installed.
- Precision tolerances for installation and steering alignment
- Belleville preload washer helps keep the bearing assembly tight as it wears
- Pre-installed bushings with optimized stiffness for quiet operation and resistance to wear, salt, road grime and oils
- Dust boot seal acts as a barrier against contaminants that cause wear
- Heat treated to inhibit premature failure
- Coated studs and an e-coated control arm inhibit premature deterioration
Quick facts
- Part: MOOG RK620587 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2006-2018 Toyota RAV4 and other vehicles
- Position: Front right lower
- Material: Stamped steel (control arm), rubber (bushings)
- Condition: New
Clunks over bumps, uneven tire wear or wandering steering can mean this control arm and ball joint assembly is worn, though a tie rod end or sway bar link can also be behind them. This listing is one arm for the front right; the front left is a separate part, and both are normally replaced together. The 2006-2018 Toyota RAV4 takes one on this side.
Fits
This MOOG lower control arm is a direct-fit replacement for a wide range of Toyota and Lexus models, including the 2006-2018 Toyota RAV4, the 2018-2021 Lexus NX300 and the 2015-2021 Lexus NX300h. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1 (this side)
- Control arm maximum length: 12.69 in
- Ball joint mounting: bolt in
- Ball joint stud: threaded
Build and materials
- Type: control arm with ball joint, not adjustable
- Control arm material: stamped steel
- Bushing material: rubber
- Pre-greased: yes
- Condition: new
- Country of origin: Taiwan
In the box

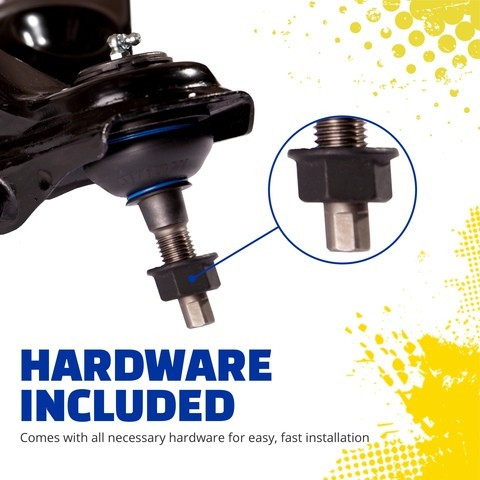

One front right lower control arm with ball joint, with the bushings and mounting hardware included. A grease fitting is not included.
Installation notes
- Arrives pre-greased.
- The ball joint socket is sealed for maintenance-free operation.
Frequently Asked Questions
Is this MOOG front lower control arm right for the 2006-2018 Toyota RAV4?
Yes. MOOG RK620587 is the front right lower arm listed for the 2006-2018 Toyota RAV4; the left side takes a separate part.
Does this MOOG control arm fit the 2018-2021 Lexus NX300?
Yes. This front right lower arm is listed for the 2018-2021 Lexus NX300, and the front left side is a separate part.
Is the MOOG control arm bushing included with RK620587?
Yes. MOOG RK620587 includes the rubber bushings, the ball joint and mounting hardware. A grease fitting is not included.
What is the MOOG lower control arm bushing made of on this arm?
The bushings are rubber, and the control arm itself is stamped steel. The bushings are pre-installed and have optimized stiffness for quiet operation.
Does the MOOG RK620587 arm have a coating for corrosion protection?
Yes. The studs are coated and the control arm is e-coated to inhibit premature deterioration. The bushings resist salt, road grime and oils.
