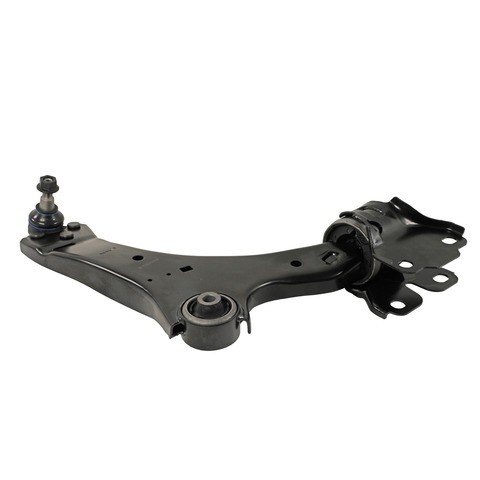

MOOG Chassis Products RK620601 front right lower control arm with ball joint for the 2007-2012 Volvo S80 and other vehicles holds the wheel to the suspension while it moves up and down. Also called a control arm and ball joint assembly, it arrives with the ball joint and bushings already on the arm.
- Engineered for structural strength and corrosion protection
- Optimized bushings for quiet operation and resistance to wear, salt, road grime and oils
- Sealed ball joint socket for maintenance-free operation
- Heat treated to inhibit premature failure
- Coated studs and an e-coated steel control arm to inhibit premature deterioration
Quick facts
- Part: MOOG Chassis Products RK620601 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2012 Volvo S80 and other vehicles
- Position: Front right lower
- Material: Stamped steel
- Condition: New
A clunk over bumps, wandering steering or uneven front tire wear can mean the arm, its bushings or the ball joint are worn. Before you replace this arm, rule out a worn sway bar link, tie rod end or strut mount, which can make similar noises. Front arms are normally replaced as a pair, and this listing is one for the right side; the front axle takes one on each side.
Fits
It fits the 2007-2012 Volvo S80, the 2011 Volvo S60 and the 2008-2010 Volvo V70.
Specifications
Fit and size
- Position: front right lower
- Quantity per application: 1
- Control arm maximum length: 11.88 in
- Ball joint mounting type: bolt in
- Ball joint stud type: threaded
- Adjustable: no
Build and materials
- Control arm material: stamped steel
- Bushing material: rubber
- Ball joint: pre-installed and pre-greased
- Grease fitting: not included
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included.
Installation notes
- Precision tolerances for installation and steering alignment.
- The ball joint is pre-installed and pre-greased.
Interchange: 102-7548 · 622.39009 · 521-224 · 507-1805
45D10489 · TC2159 · TC3554 · CB45204PR · CA14496 · 9CB10192 · CB45204 · FA3312 · CMS101062 · MS101062 · 2606316 · JTC533 · 1507182 · 31200449 · 31200564 · 31200775 · 31212781 · 31277344 · 312773440 · 312773443 · 31317662
This part cross-references / interchanges with the following part numbers:
45D10489, 102-7548, 622.39009, TC2159, TC3554, 521-224, CB45204PR, CA14496, 9CB10192, CB45204, FA3312, CMS101062, MS101062, 2606316, 507-1805, JTC533, 1507182, 31200449, 31200564, 31200775, 31212781, 31277344, 312773440, 312773443, 31317662
Frequently Asked Questions
Is this Volvo S80 control arm for 2007-2012 models the front right lower one?
Yes. MOOG Chassis Products RK620601 is the front right lower control arm with ball joint for the 2007-2012 Volvo S80. The left side is a separate part.
Does this control arm come with the ball joint and bushings?
Yes. The ball joint and bushings are installed on the arm, and mounting hardware is included. A grease fitting is not included.
What are the bushings made of on this front lower arm?
The bushings are rubber, and the arm is stamped steel. The ball joint stud is threaded and bolts in.
How can I tell if a front lower control arm is worn?
Torn or cracked bushing rubber, a split or greasy ball joint boot, or pulling to one side can mean wear. A shop can test the ball joint for play safely.
Does MOOG RK620601 cross-reference to 507-1805?
Yes. Number 507-1805 is on the interchange list for RK620601, along with 521-224 and other numbers printed at the bottom of the page.
