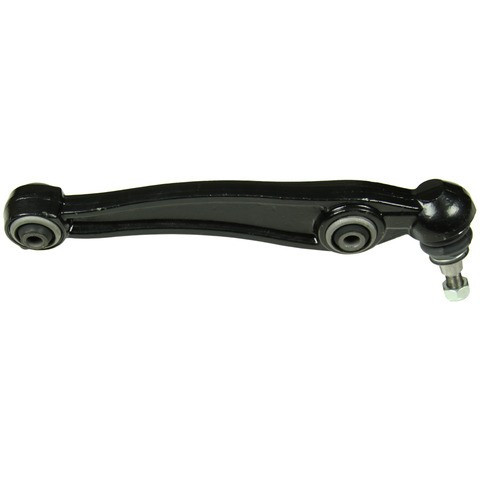

MOOG Chassis Products RK620800 front left lower control arm with ball joint for the 2008-2014 BMW X6 and other vehicles links the wheel to the chassis. Sold as a control arm and ball joint assembly.
- Optimized rubber bushings for quiet operation and resistance to wear, salt, road grime and oils
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Ball stud shape designed for fatigue life
- Heat treated to inhibit premature failure
- Coated studs and e-coated finish to inhibit premature deterioration
Quick facts
- Part: MOOG Chassis Products RK620800 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2008-2014 BMW X6 and other vehicles
- Position: Front left lower rearward
- Material: Forged steel
- Condition: New
Clunking over bumps, loose steering or uneven tire wear can mean this arm or its ball joint is worn, though a worn sway bar link or wheel bearing can produce similar noises or looseness. On the 2008-2014 BMW X6 this front left position takes one arm; the front right is a separate part ordered separately, and both sides are normally replaced together.
Fits
It is a direct-fit replacement for the 2008-2014 BMW X6 and the 2007-2013 BMW X5.
Specifications
Fit and size
- Position: front left lower rearward
- Quantity per application: 1
- Maximum control arm length: 10.55 in
- Ball joint mounting type: press-in
- Ball joint stud type: threaded
- Adjustable: no
Build and materials
- Control arm material: forged steel
- Bushing material: rubber
- Grade type: Premium
- Pre-greased: yes
- Condition: new
- Country of origin: Turkey
In the box
One control arm with its bushings, ball joint and mounting hardware. A grease fitting is not included.
Installation notes
- Comes pre-greased.
- Precision tolerances are built for easy installation and steering alignment.
Interchange: 101-6798 · 102-7038 · 622.34033 · 521-163 · 507-1865
45D10375 · 31126771893 · TC2229 · CB14363PR · CA2205 · 2CB10234 · CB14363 · FA3408 · CMS101083 · MS101083 · 2606414 · JBU697 · JTC1454
This part cross-references / interchanges with the following part numbers:
45D10375, 31126771893, 101-6798, 102-7038, 622.34033, TC2229, 521-163, CB14363PR, CA2205, 2CB10234, CB14363, FA3408, CMS101083, MS101083, 2606414, 507-1865, JBU697, JTC1454
Frequently Asked Questions
Will this control arm fit the 2008-2014 BMW X6?
Yes. MOOG Chassis Products RK620800 is a front left lower rearward control arm for the 2008-2014 BMW X6 and also fits the 2007-2013 BMW X5.
Does this control arm include the bushings and mounting hardware?
Yes, it comes with its bushings, ball joint and mounting hardware; a grease fitting is not included.
What are the bushing and ball joint stud specs on this control arm?
MOOG RK620800 has rubber bushings and a threaded ball joint stud with press-in mounting. The control arm itself is forged steel.
Is the ball joint on this lower control arm pre-greased?
Yes. This lower control arm comes pre-greased, and its ball joint has a sealed socket for maintenance-free operation.
Is 31126771893 an interchange number for this control arm?
Yes. 31126771893 is one of the numbers MOOG Chassis Products RK620800 replaces, and it is printed on the Interchange line.
