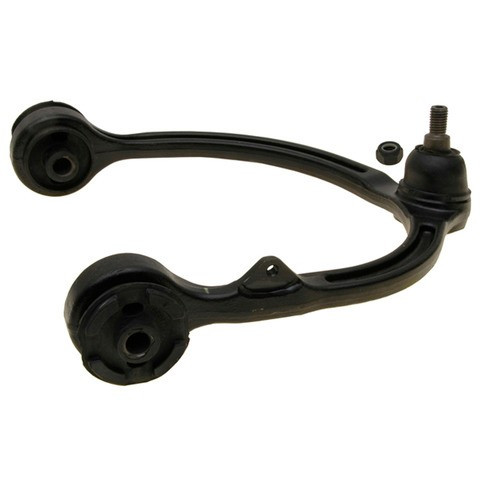

MOOG Chassis Products RK621538 front right upper control arm with ball joint for the 2007-2023 Dodge Charger and other vehicles links the wheel to the chassis and lets it move with the suspension. This control arm and ball joint assembly replaces the arm and ball joint as one unit.
- Precision tolerances for easy installation and steering alignment
- Optimized rubber bushings for quiet operation and resistance to wear, salt, road grime and oils
- Sealed ball joint socket for maintenance-free operation
- Heat treated to inhibit premature failure
- E-coated control arm and coated studs to inhibit premature deterioration
Quick facts
- Part: MOOG Chassis Products RK621538 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2023 Dodge Charger and other vehicles
- Position: Front right upper
- Material: Forged steel
- Condition: New
A clunk over bumps, wandering steering or uneven front tire wear can mean a worn control arm, bushing or ball joint. These signs alone do not prove the arm is the problem, since a worn tie rod end can also loosen the steering. Each side of the front axle takes one upper arm, and this listing is the right one.
Fits
Fitment includes the 2007-2023 Dodge Charger, the 2005-2023 Chrysler 300 and the 2017-2023 Dodge Challenger, among others. It is a direct-fit control arm replacement for these vehicles. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one arm for the front right; the front left upper arm is a separate part, and both sides of the axle are normally done at the same time.
Specifications
Fit and size
- Position: Front right upper
- Quantity per application: 1
- Control arm maximum length: 11.730 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Forged steel
- Bushing material: Rubber
- Adjustable: No
- Condition: New
- Country of origin: Taiwan
In the box
One control arm with ball joint, bushings and mounting hardware.
Installation notes
- The ball joint is pre-installed in the arm and pre-greased.
- A grease fitting is not included.
Interchange: 507-704 · 521-704 · 507-2169
45D10037 · 62263829 · 4895668AA · 4895668AB · 5180596AB · 5180596AC · TC5686 · CB81128PR · CA10325 · K621538 · FA3832 · CMS251009 · MS251009 · 2606765 · 2606765M
This part cross-references / interchanges with the following part numbers:
45D10037, 62263829, 4895668AA, 4895668AB, 5180596AB, 5180596AC, TC5686, 507-704, 521-704, CB81128PR, CA10325, K621538, FA3832, CMS251009, MS251009, 2606765, 2606765M, 507-2169
Frequently Asked Questions
Is the MOOG RK621538 a 2007-2023 Dodge Charger control arm for the front right upper position?
Yes, MOOG Chassis Products RK621538 is the front right upper arm for the 2007-2023 Dodge Charger. Open the "Vehicles it fits" section to check another model or engine.
Does MOOG RK621538 come with the bushings and mounting hardware?
Yes, RK621538 comes with its ball joint, bushings and mounting hardware; a grease fitting is not included.
Is the ball joint on this control arm press-in or bolt-in?
It is a press-in ball joint with a threaded stud, and it arrives already installed in the arm.
Is the MOOG RK621538 control arm forged steel?
Yes, the arm is forged steel with rubber bushings. The arm is e-coated and the studs are coated to inhibit premature deterioration.
Is 4895668AA the same control arm as MOOG RK621538?
Yes, 4895668AA is one of the numbers MOOG RK621538 replaces, along with 5180596AB and 507-704.
