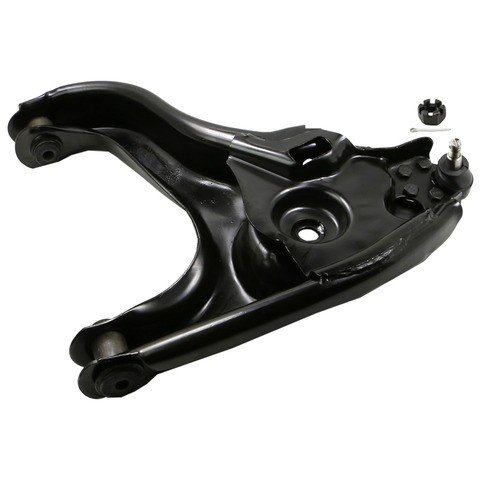

MOOG Chassis Products RK621562 front right lower control arm with ball joint for the 2000-2001 Dodge Ram 1500 links the wheel to the frame and carries the ball joint. The bushings and ball joint are already part of the arm.
- Engineered for structural strength and corrosion protection
- Optimized bushings for quiet operation and resistance to wear, salt, road grime and oils
- Ball stud shaped for fatigue life, compensating for sag and adding extra swing
- Heat treated to inhibit premature failure
- Coated studs and an e-coated control arm to inhibit premature deterioration
Quick facts
- Part: MOOG Chassis Products RK621562 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2000-2001 Dodge Ram 1500
- Position: Front right lower
- Material: Stamped steel control arm, rubber bushings
- Condition: New
A clunk over bumps, loose or wandering steering or uneven tire wear can mean the bushings or ball joint on a lower arm are worn. These signs alone do not prove this arm is the problem, since a worn tie rod end can loosen the steering too. If this arm is the cause, this control arm and ball joint assembly replaces the arm, bushings and ball joint in one piece.
Fits
This lower control arm is a direct-fit replacement for the front right side of the 2000-2001 Dodge Ram 1500. The listing is one arm for that side; the front left is a separate part ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front right lower
- Quantity per application: 1
- Maximum length: 20.7 in
- Ball joint mounting type: Bolt in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Stamped steel
- Bushing material: Rubber
- Grade type: Premium
- Condition: New
- Country of origin: China
In the box
One front right lower control arm with its ball joint, bushings, grease fitting and mounting hardware.
Installation notes
- Comes pre-greased.
- Precision tolerances are made for easy installation and steering alignment.
Interchange: 521-652 · 507-1638
45D10431 · 62267005 · 52113888AA · 52113888AB · CB81274PR · CA18069 · CB81274 · FA3078 · CMS25145 · MS25145 · 2606077 · 11CB25085
This part cross-references / interchanges with the following part numbers:
45D10431, 62267005, 52113888AA, 52113888AB, 521-652, CB81274PR, CA18069, CB81274, FA3078, CMS25145, MS25145, 2606077, 11CB25085, 507-1638
Frequently Asked Questions
Are these 2000-2001 Ram 1500 control arms sold as a pair?
No. MOOG Chassis Products RK621562 is one front right lower control arm with ball joint for the 2000-2001 Dodge Ram 1500. The left side is a separate part.
What is included with this control arm besides the arm itself?
The ball joint, bushings, grease fitting and mounting hardware are all included with the arm, so the listing needs no separate bushings or ball joint.
What is MOOG RK621562 made of?
MOOG RK621562 has a stamped steel control arm with rubber bushings. Its studs are coated and the arm is e-coated to inhibit premature deterioration.
Is the ball joint on this control arm threaded or press-in?
The ball joint has a threaded stud and a bolt-in mounting type. This control arm is not adjustable.
Does this control arm need greasing before it goes on?
No, this control arm comes pre-greased, and a grease fitting is included. Its tolerances are made for easy installation and steering alignment.
