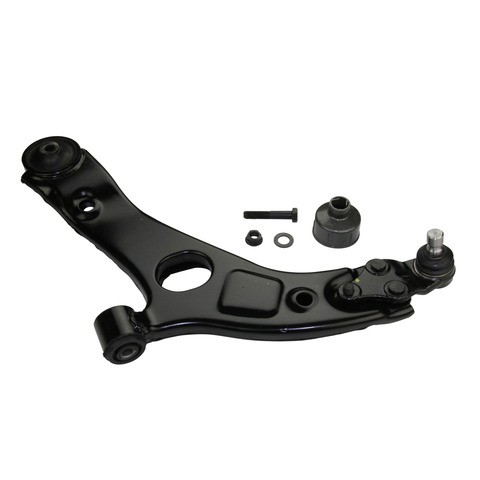

MOOG Chassis Products RK621592 front left lower control arm with ball joint for the 2011 Hyundai Sonata and other vehicles connects the front left wheel to the chassis. It is also called a control arm and ball joint assembly.
- Sealed ball joint socket for maintenance-free operation
- Rubber bushings optimized for quiet operation and resistance to wear, salt, road grime and oils
- Stamped steel arm, heat treated to inhibit premature failure
- Coated studs and an e-coated arm to inhibit premature deterioration
- Ball stud shape intended to extend fatigue life
Quick facts
- Part: MOOG Chassis Products RK621592 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011 Hyundai Sonata and other vehicles
- Position: Front left lower
- Material: Stamped steel
- Condition: New
A worn arm can show up as a clunk over bumps, uneven tire wear or a loose, wandering feel in the steering. Those signs can also come from other suspension parts, so with the engine off and cool, look over the bushings and ball joint for cracks, tears or leaking grease before you replace the arm.
Fits
It is a direct-fit replacement for the 2011 Hyundai Sonata, the 2011 Kia Optima and the 2012-2014 Hyundai Azera. This listing is one arm for the front left, and that side takes one; the front right is a separate part, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 for this side
- Control arm maximum length: 17.820 in
- Ball joint mounting type: Bolt in
- Ball joint stud type: Pinch
Build and materials
- Type: Control arm with pre-installed ball joint
- Control arm material: Stamped steel
- Bushing material: Rubber
- Pre-greased: Yes
- Condition: New
- Country of origin: China
In the box
One control arm with its bushings, ball joint and mounting hardware. A grease fitting is not included.
Installation notes
- The ball joint comes pre-installed and pre-greased.
- Precision tolerances are intended to make installation and steering alignment easier.
Interchange: 101-7351 · 522-967 · 507-2310
45D10166 · TC3733 · 545003S100 · FA3998 · CMS901065 · CMS901153 · MS901065 · MS901153 · 2606935 · JTC2877
This part cross-references / interchanges with the following part numbers:
45D10166, 101-7351, TC3733, 522-967, 545003S100, FA3998, CMS901065, CMS901153, MS901065, MS901153, 2606935, 507-2310, JTC2877
Frequently Asked Questions
Does the 2011 Hyundai Sonata control arm in this listing cover the front left lower position?
Yes. MOOG Chassis Products RK621592 is the front left lower control arm with ball joint for the 2011 Hyundai Sonata. The front right side is a separate part.
Do the bushings and ball joint come already installed on this MOOG control arm?
Yes. On MOOG Chassis Products RK621592 the rubber bushings and ball joint are included and mounting hardware comes with it. A grease fitting is not included.
Is this arm stamped steel, and what are the bushings made of?
Yes, this front left control arm is stamped steel and its bushings are rubber. The studs are coated and the arm is e-coated.
Does the ball joint on this control arm need greasing?
No grease fitting is included. The ball joint comes pre-greased in a sealed socket made for maintenance-free operation.
Is 522-967 an interchange number for this control arm?
Yes. 522-967 is listed among the numbers MOOG Chassis Products RK621592 replaces, along with 101-7351 and 507-2310.
