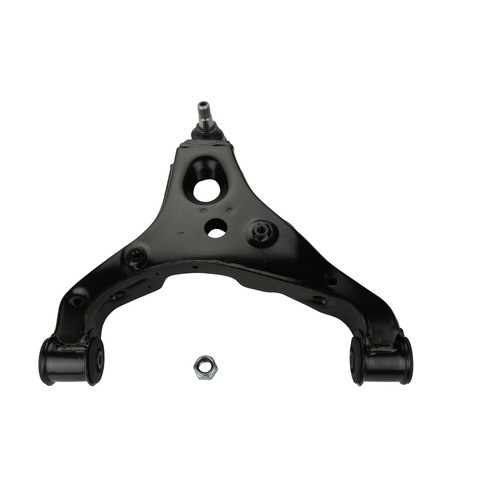

MOOG Chassis Products RK621967 front right lower control arm for the 2010-2024 Mercedes-Benz Sprinter 2500 and other vehicles links the wheel to the vehicle frame.
- Sealed ball joint socket for maintenance-free operation
- Rubber bushings with optimized stiffness for quiet operation and resistance to wear, salt, road grime and oils
- Belleville preload washer that helps keep the bearing assembly tight as it wears
- E-coated control arm and coated studs to inhibit premature deterioration
- Heat-treated for structural strength to inhibit premature failure
Quick facts
- Part: MOOG Chassis Products RK621967 control arm
- Also called: suspension control arm
- Fits: 2010-2024 Mercedes-Benz Sprinter 2500 and other vehicles
- Position: Front right lower
- Material: Stamped steel
- Condition: New
A clunk over bumps, uneven tire wear or loose steering can mean a worn suspension control arm or ball joint. Tie rod ends, shocks and the other bushings can be behind the same signs, so find the cause before you buy.
Fits
This control arm is listed for a wide range of Mercedes-Benz models, including the 2010-2024 Mercedes-Benz Sprinter 3500 and the 2018-2024 Mercedes-Benz Sprinter 3500XD. Open the "Vehicles it fits" section to check your exact model and engine. The 2010-2024 Mercedes-Benz Sprinter 2500 takes one on the front right; the front left is a separate part ordered on its own, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
- Control arm maximum length: 19.094 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Stamped steel
- Bushing material: Rubber
- Bushings and ball joint: Included
- Grade: Premium
- Condition: New
- Country of origin: Turkey
In the box
One control arm with ball joint and bushings. A grease fitting is not included.
Installation notes
- Ball joint and bushings come pre-installed.
- Precision tolerances are meant to make installation and steering alignment easier.
Interchange: 521-626 · 524-664
45D10252 · 9063304107 · TC2449 · CA14505 · CA14654 · CB81374 · 9163314117 · CMS101351 · 12CB25205 · 2E0407152M
This part cross-references / interchanges with the following part numbers:
45D10252, 9063304107, TC2449, 521-626, 524-664, CA14505, CA14654, CB81374, 9163314117, CMS101351, 12CB25205, 2E0407152M
Frequently Asked Questions
Is the MOOG RK621967 control arm right for a 2010-2024 Mercedes-Benz Sprinter 2500?
Yes. MOOG Chassis Products RK621967 is a front right lower arm listed for the 2010-2024 Mercedes-Benz Sprinter 2500. The "Vehicles it fits" section covers other models.
Does the RK621967 arm come with the ball joint and bushings?
Yes. The ball joint and rubber bushings are included and pre-installed on this front right lower arm. A grease fitting is not included.
What ball joint stud and mounting type does this control arm have?
MOOG Chassis Products RK621967 has a threaded ball joint stud and a press-in ball joint mount. The arm is stamped steel with rubber bushings, and it is 19.094 in long at its maximum.
How can I tell if this front right lower control arm is worn?
Clunking or vibration from the front right and steering that feels loose can be signs of wear. A shop can check the bushings and ball joint play with the vehicle raised.
Is the ball joint on MOOG RK621967 maintenance-free?
Yes. The pre-installed ball joint has a sealed socket for maintenance-free operation, and no grease fitting comes with the arm.
