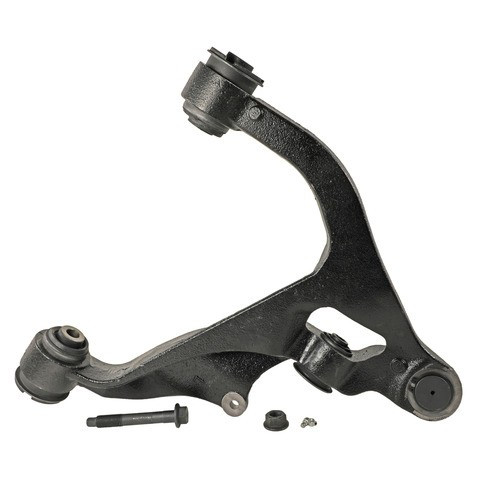

MOOG RK641504 front left lower control arm with ball joint for the 2011-2018 Ram 1500 and other vehicles connects the wheel to the vehicle and lets it move with the suspension. This MOOG control arm is a control arm and ball joint assembly that comes with its bushings and grease fitting.
- Pre-installed dust boot seal blocks wear-causing contaminants
- Belleville preload washer helps keep the bearing assembly tight as it wears
- Induction-hardened studs and a patent-pending carbon fiber-reinforced bearing reduce socket friction
- Greasable design lets fresh grease push contaminated grease out of the joint cavity
- Coated studs and an e-coated control arm inhibit premature deterioration
- Bushings optimized for quiet operation and resistance to wear, salt, road grime and oils
Quick facts
- Part: MOOG RK641504 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2018 Ram 1500 and other vehicles
- Position: Front left lower
- Material: Forged steel control arm, rubber bushings
- Condition: New
A clunk over bumps, loose steering or uneven tire wear can mean a worn ball joint or bushing. These signs alone do not prove this arm is the problem, since a worn tie rod end can also loosen the steering. Control arms are normally replaced as a left and right pair, and this listing is one arm for the front left. The 2011-2018 Ram 1500 takes one on that side, and the front right is ordered separately.
Fits
As a lower control arm for the 2011-2018 Ram 1500, it also fits the 2006-2010 Dodge Ram 1500 and the 2019-2024 Ram 1500 Classic.
Specifications
Fit and size
- Position: Front left lower
- Quantity per application: 1
- Maximum length: 20.390 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Type: Control arm with ball joint
- Control arm material: Forged steel
- Bushing material: Rubber
- Grade type: Premium
- Pre-greased, with grease fitting
- Condition: New
- Country of origin: China
In the box
One front left lower control arm with ball joint, bushings, a grease fitting and mounting hardware.
Installation notes
- Comes pre-greased.
- Precision tolerances for easy installation and steering alignment.
Frequently Asked Questions
Is this a control arm for the 2006-2010 Dodge Ram 1500?
Yes. The MOOG RK641504 fits the 2006-2010 Dodge Ram 1500 as a front left lower control arm with ball joint.
Will the MOOG RK641504 work on the 2019-2024 Ram 1500 Classic?
Yes. MOOG RK641504 fits the 2019-2024 Ram 1500 Classic on the front left lower side.
Is the MOOG control arm bushing rubber, and what is the arm made of?
Yes, the bushings are rubber and the control arm is forged steel. The ball joint stud is threaded.
Is this MOOG lower control arm greasable?
Yes. This lower control arm comes pre-greased with a grease fitting included, and the greasable design lets fresh grease push contaminated grease out of the joint cavity.
What hardware comes with the MOOG RK641504 control arm?
The listing includes the ball joint, bushings, a grease fitting and mounting hardware along with the front left lower control arm.
