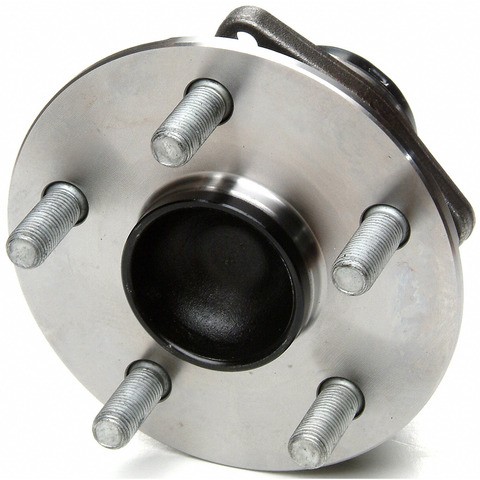

MOOG 512217 rear wheel bearing and hub assembly for the 2003-2008 Toyota Corolla and other vehicles supports the rear wheel and lets it turn smoothly on the axle.
- Roll-form design sets a consistent, optimal preload at the factory to minimize excessive noise and wear
- Application-specific advanced raceway design reduces stress, rotation and heat on components
- Quad lip seal design keeps moisture and other contaminants out
- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
Quick facts
- Part: MOOG 512217 wheel bearing and hub assembly
- Fits: 2003-2008 Toyota Corolla and other vehicles
- Position: Rear
- Condition: New
A humming or growling noise that rises with speed, or looseness at the wheel, can mean the bearing is worn. Before replacing the hub, look over the rear tires for uneven wear, since a noisy tire can sound much like a bad bearing. This listing is one assembly; the other rear wheel has its own, and both sides are normally replaced together.
Fits
It is a bearing replacement for the 2003-2008 Toyota Corolla, the 2004-2009 Toyota Prius and the 2003-2008 Toyota Matrix, and each takes two, one for each rear wheel. If your car is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 100 mm (3.94 in)
- Flange bolt holes: 4
- Brake pilot diameter: 55 mm
- Flange diameter: 135 mm
- Flange offset: 54.5 mm
- Flange shape: Rectangular
Build and materials
- Condition: New
- Anti-lock brake sensor: included
- Wheel studs: coated
- Country of origin: China
In the box
One rear wheel bearing and hub assembly with its anti-lock brake sensor.
Frequently Asked Questions
Is MOOG 512217 the 2003-2008 Toyota Corolla wheel bearing for the rear wheels?
Yes. MOOG 512217 is a rear wheel bearing and hub assembly for the 2003-2008 Toyota Corolla, and the car takes two, one per rear wheel.
Is MOOG 512217 the wheel bearing for the rear of a 2004-2009 Toyota Prius?
Yes. MOOG 512217 is listed for the rear wheels of the 2004-2009 Toyota Prius, and this listing is one assembly.
Does MOOG 512217 come with the anti-lock brake sensor?
Yes. The anti-lock brake sensor is included with this rear wheel bearing and hub assembly, which is sold one per listing.
What are the bolt circle and flange sizes on this rear wheel bearing and hub assembly?
The bolt circle is 100 mm (3.94 in) with 4 flange bolt holes. The brake pilot measures 55 mm, the flange diameter is 135 mm and the flange offset is 54.5 mm.
How does this rear wheel bearing and hub assembly keep water and dirt out?
Its quad lip seal design keeps moisture and other contaminants out. The wheel studs are coated to resist corrosion and rust, which helps with removal later.
