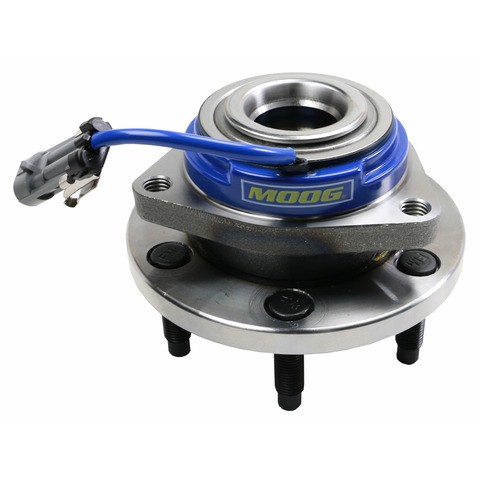

MOOG 512243 rear wheel bearing and hub assembly for the 2005-2011 Cadillac STS and other vehicles supports the rear wheel and lets it spin freely.
- Precise roll-form design sets a consistent factory-installed preload to minimize excessive noise and wear
- Application-specific advanced raceway design reduces stress, rotation and heat on components
- Quad lip seal design keeps moisture and other contaminants out to inhibit damage
- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- Tested by MOOG engineers throughout design and development
Quick facts
- Part: MOOG 512243 wheel bearing and hub assembly
- Fits: the 2005-2011 Cadillac STS and other vehicles
- Position: Rear
- Condition: New
A humming or growling that changes with speed, or play at the rear wheel, can mean the bearing is wearing. A worn tire, a loose lug nut or a dragging brake can sound similar, so find the cause before buying.
Fits
This is a direct-fit replacement for the 2005-2011 Cadillac STS, the 2004-2009 Cadillac SRX and the 2004-2007 Cadillac CTS. This listing is one assembly; these cars take two, one for each rear wheel, so order a pair and fit them together.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Bolt circle diameter: 115 mm, 3 flange bolt holes
- Brake pilot diameter: 70.1 mm
- Flange diameter: 145.5 mm
- Flange offset: 42.1 mm
Build and materials
- ABS sensor: included
- Wheel studs: coated
- Condition: new
- Country of origin: Taiwan
In the box
One rear wheel bearing and hub assembly with its ABS sensor.
Interchange: RW20-19 · 402.62008 · 402.62008E
WE61022 · BR930368 · BR930458 · NT512243 · 102260 · 12413107 · 12413108 · 12413202 · 25737778 · 7467456 · 89047639 · 89047669 · 512249 · G512243 · H512243 · 712243 · HA590079
This part cross-references / interchanges with the following part numbers:
512243, RW20-19, WE61022, 402.62008, 402.62008E, BR930368, BR930458, NT512243, 102260, 12413107, 12413108, 12413202, 25737778, 7467456, 89047639, 89047669, 512249, G512243, H512243, 712243, HA590079
Frequently Asked Questions
Is the MOOG 512243 a Cadillac CTS wheel bearing for model years 2004-2007?
Yes. MOOG 512243 is a rear wheel bearing and hub assembly for the 2004-2007 Cadillac CTS, and the car takes two, one for each rear wheel.
Does this rear wheel bearing and hub assembly work as a Cadillac SRX wheel bearing for model years 2004-2009?
Yes. This rear wheel bearing and hub assembly fits the 2004-2009 Cadillac SRX, and that car takes two, one for each rear wheel.
Does the MOOG 512243 come with the ABS sensor?
Yes. The MOOG 512243 rear wheel bearing and hub assembly includes the ABS sensor, and its wheel studs are coated.
What bolt circle and flange size does this rear wheel bearing and hub assembly have?
The bolt circle diameter is 115 mm with 3 flange bolt holes. The brake pilot diameter is 70.1 mm, the flange diameter is 145.5 mm and the flange offset is 42.1 mm.
What noise comes from a worn rear wheel bearing and hub assembly?
A humming or growling that changes with speed can mean the bearing is wearing, as can play at the wheel. A shop can confirm it, and a worn bearing should be checked promptly.
