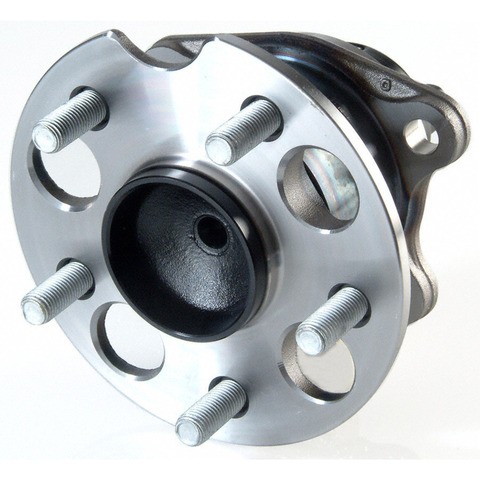

MOOG 512283 rear right wheel bearing and hub assembly for the 2004-2007 Toyota Highlander and other vehicles supports the rear right wheel and lets it turn smoothly.
- Design enhancements intended to extend product life and simplify installation and replacement
- Precision-matched bearing raceways and rolling elements from tightly controlled manufacturing, to minimize noise and vibration
- Engineered to overcome problems and deliver smooth, reliable performance
- Anti-lock brake sensor included with the wheel bearing and hub assembly
- Application-specific design
Quick facts
- Part: MOOG 512283 wheel bearing and hub assembly
- Fits: 2004-2007 Toyota Highlander and other vehicles
- Position: Rear right
- Condition: New
A worn wheel bearing can show up as a humming or growling noise that changes with speed, or as vibration from the wheel. Before you replace this wheel bearing and hub assembly, rule out tire wear, wheel balance and brake problems that can make similar noises.
Fits
This wheel bearing and hub assembly fits the 2004-2007 Toyota Highlander, the 2007-2009 Lexus RX350 and the 2006-2008 Lexus RX400h. The 2004-2007 Toyota Highlander takes one at the rear right, and the rear left is a separate part ordered on its own.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1
- Bolt circle: 114.3 mm (4.500 in), 4 flange bolt holes
- Brake pilot diameter: 62 mm
- Flange diameter: 152 mm
- Flange offset: 72 mm
- Flange shape: trapezoid
Build and materials
- Anti-lock brake sensor: included
- Condition: new
- Country of origin: China
In the box
One rear right wheel bearing and hub assembly with the anti-lock brake sensor.
Interchange: 051-6102 · 407.44004E · 42450-0E010 · 42450-48030
WE61057 · 516102 · 40744004 · BR930377 · NT512283 · 7700348 · H512283 · 712283 · HA592451 · 4245000000000000 · 424515 · 4250000000000000
This part cross-references / interchanges with the following part numbers:
WE61057, 051-6102, 516102, 40744004, 407.44004E, BR930377, NT512283, 7700348, H512283, 712283, HA592451, 4245000000000000, 42450-0E010, 42450-48030, 4245048030, 424515, 4250000000000000, 4.25e17
Frequently Asked Questions
Is this the right wheel bearing for a 2004-2007 Toyota Highlander?
Yes, MOOG 512283 is the rear right wheel bearing and hub assembly for the 2004-2007 Toyota Highlander and other vehicles. If your car is a different one, look it up in the Vehicles it fits section.
Which side does this wheel bearing replacement for the 2004-2007 Toyota Highlander go on?
The rear right. The rear left is a separate part that is ordered on its own.
Does this wheel bearing and hub assembly come with the ABS sensor?
Yes, MOOG 512283 includes the anti-lock brake sensor along with the wheel bearing and hub assembly.
What is the bolt circle on this rear right wheel bearing and hub assembly?
The flange has 4 bolt holes on a 114.3 mm (4.500 in) bolt circle. The brake pilot diameter is 62 mm and the flange diameter is 152 mm.
How can I tell if this rear right wheel bearing is going bad?
A humming or growling noise that changes with speed, or vibration felt from the wheel, can point to a worn bearing. A shop can test it to confirm.
