Rear Wheel Bearing and Hub Assembly for 2004-2013 Toyota Highlander & More - MOOG 512284

$250.99
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512284
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512284

Vehicles this part fits
    Part number: 512284
    UPC: 614046778436
    Condition: New
    Weight: 8.40 LBS
    Item Package Quantity: 1
    $250.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512284
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512284
    $250.99
    $250.99

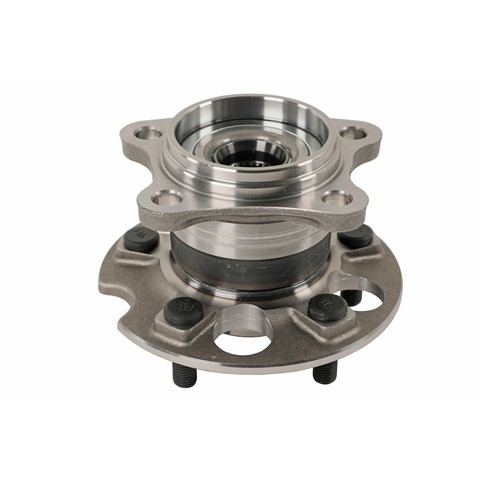

    MOOG 512284 rear wheel bearing and hub assembly for the 2004-2013 Toyota Highlander and other vehicles carries the rear wheel and lets it spin on the axle.

    • Precise roll-form design for consistent, optimal factory-installed preload that minimizes excessive noise and wear
    • Application-specific advanced raceway design that reduces stress, rotation and heat on components
    • Quad lip seal design that keeps moisture and other contaminants out
    • Coated wheel studs that resist corrosion and rust for easier removal and proper torqueing
    • Comprehensive testing by MOOG engineers throughout design and development
    • Engineered for fast installation

    Quick facts

    • Part: MOOG 512284 wheel bearing and hub assembly
    • Fits: 2004-2013 Toyota Highlander and other vehicles
    • Position: Rear
    • Condition: New

    Worn tires, a dragging brake or a loose wheel can produce a hum or growl too, so find the cause before replacing the bearing. Play in the wheel or a rumble that changes with speed can also mean a worn bearing. Both rear bearings are normally replaced together; this listing is one assembly, and the 2004-2013 Toyota Highlander takes two.

    Fits

    The 2004-2013 Toyota Highlander, 2009-2016 Toyota Venza and 2007-2009 Lexus RX350 are among the vehicles this assembly fits, along with other Toyota and Lexus models. Driving something else? Look up your year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Bolt circle diameter: 114.3 mm (4.5 in)
    • Brake pilot diameter: 62 mm
    • Flange diameter: 152 mm
    • Flange offset: 72 mm
    • Flange bolt holes: 4
    • Flange shape: Modified

    Build and materials

    • Condition: New
    • Wheel studs: coated
    • ABS sensor: not included
    • Country of origin: Thailand

    In the box

    One wheel bearing and hub assembly with coated wheel studs. The anti-lock brake sensor is not included.

    Frequently Asked Questions

    Is this the right 2004-2013 Toyota Highlander wheel bearing for the rear?

    Yes. MOOG 512284 is a rear wheel bearing and hub assembly for the 2004-2013 Toyota Highlander.

    Does this rear wheel bearing and hub assembly fit the 2009-2016 Toyota Venza?

    Yes. MOOG 512284 fits the rear of the 2009-2016 Toyota Venza, which takes two.

    Does this wheel bearing and hub assembly come with the ABS sensor?

    No. The anti-lock brake sensor is not included, so it is a separate part from this rear wheel bearing and hub assembly.

    What is the bolt circle on the MOOG 512284 hub?

    MOOG 512284 has a 114.3 mm (4.5 in) bolt circle, 4 flange bolt holes and a 62 mm brake pilot diameter.

    How can I tell if a rear wheel bearing is wearing out?

    A hum or growl from the rear that changes with speed, or play in the wheel, can mean a worn bearing. A shop can confirm the cause.
