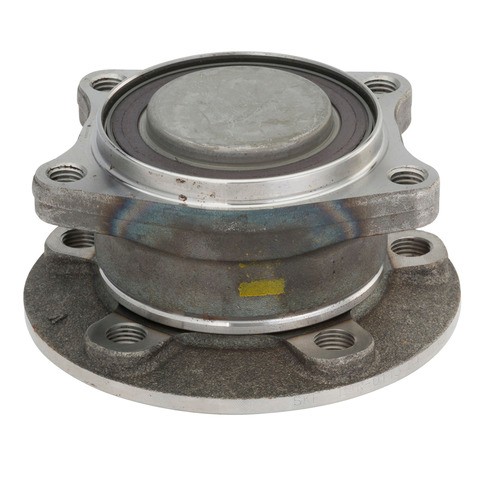

MOOG 512395 rear wheel bearing and hub assembly for the 2003-2014 Volvo XC90 holds the rear wheel and lets it turn on the axle. The bearing and hub are one unit, so a worn bearing means replacing the whole assembly.
- Problem Solver design enhancements that extend product life and simplify installation and replacement
- Roll form design for consistent and optimal preload
- Bearing raceways and rolling elements matched exactly through tightly controlled manufacturing, to minimize noise and vibration
- Performance proven and quality tested
- Anti-lock brake sensor included
Quick facts
- Part: MOOG 512395 wheel bearing and hub assembly
- Fits: 2003-2014 Volvo XC90
- Position: Rear
- Condition: New
A worn bearing can show up as a hum or growl that changes with speed, play at the wheel, or vibration. Before you replace the assembly, rule out the tires, the wheel and the brake parts, since they can cause similar noise or vibration.
Fits
This is a direct-fit replacement wheel bearing for the 2003-2014 Volvo XC90. This listing is one assembly; the 2003-2014 Volvo XC90 takes two at the rear, so order two and fit them together.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 109.5 mm, 4 flange bolt holes
- Brake pilot diameter: 68 mm
- Flange diameter: 135.7 mm
- Flange offset: 58.9 mm
Build and materials
- Type: Wheel bearing and hub assembly
- ABS sensor: included
- Condition: New
- Country of origin: China
Interchange: BAR-0113-AD · BAR-0113-ADX · 30748989-8
WE61438 · BR930517 · H512395 · VKBA3631 · HA590289 · HA590445 · 30748989 · 31340119 · 313401190 · 31340120 · 313401200 · 313403412
This part cross-references / interchanges with the following part numbers:
WE61438, BR930517, H512395, BAR-0113-AD, BAR-0113-ADX, VKBA3631, 512395, HA590289, HA590445, 30748989, 307489898, 30748989-8, 31340119, 313401190, 31340120, 313401200, 313403412
Frequently Asked Questions
Does the MOOG 512395 fit the 2003-2014 Volvo XC90?
Yes. MOOG 512395 is a rear wheel bearing and hub assembly for the 2003-2014 Volvo XC90, and the car takes two.
Does this rear wheel bearing and hub assembly come with the anti-lock brake sensor?
Yes. MOOG 512395 lists the anti-lock brake sensor as included, so the sensor comes with the assembly.
What is the bolt pattern on this MOOG rear wheel bearing and hub assembly?
It has 4 flange bolt holes on a 109.5 mm bolt circle. The brake pilot diameter is 68 mm and the flange diameter is 135.7 mm.
What noises come from a worn rear wheel bearing?
A hum or growl that changes with speed, or play in the wheel, can mean the bearing is worn. A shop can confirm it.
Is VKBA3631 the same as this MOOG wheel bearing and hub assembly?
Yes. VKBA3631 is one of the numbers MOOG 512395 replaces, along with H512395 and BR930517.
