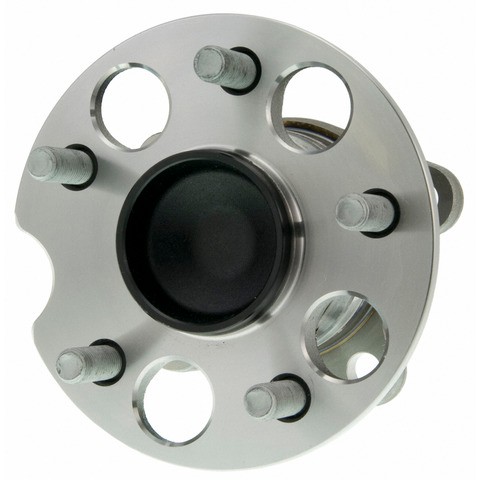

Rear Right Wheel Bearing and Hub Assembly for 2008-2013 Toyota Highlander - MOOG 512420

$289.99
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512420
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512420

Vehicles this part fits
    Part number: 512420
    UPC: 614046976504
    Condition: New
    Weight: 9.38 LBS
    Item Package Quantity: 1
    $289.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512420
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512420
    $289.99
    $289.99

    MOOG 512420 rear right wheel bearing and hub assembly for the 2008-2013 Toyota Highlander carries the wheel on a bearing so it can turn smoothly. As a 2008-2013 Toyota Highlander wheel bearing, it replaces the bearing and hub as one unit.

    • Roll form design for consistent and optimal preload
    • Bearing raceways and rolling elements matched through tightly controlled manufacturing to reduce noise and vibration
    • Design enhancements intended to extend product life and simplify installation and replacement
    • Performance-proven and quality-tested hub assemblies

    Quick facts

    • Part: MOOG 512420 wheel bearing and hub assembly
    • Fits: 2008-2013 Toyota Highlander
    • Position: Rear right
    • Condition: New

    A worn wheel bearing can show up as a humming or growling noise that changes with speed, or as looseness at the wheel. Before you replace the assembly, rule out the tires, brakes and suspension first, since they can make similar noises.

    Fits

    It fits the 2008-2013 Toyota Highlander. Each side of the rear axle takes one hub assembly. This listing is the right side, so the rear left is its own part and is ordered separately.

    Specifications

    Fit and size

    • Position: rear right
    • Quantity per vehicle: 1
    • Bolt circle diameter: 114.3 mm (4.5 in), 4 flange bolt holes
    • Brake pilot diameter: 62 mm
    • Flange diameter: 152 mm
    • Flange offset: 72 mm

    Build and materials

    • Type: wheel bearing and hub assembly
    • Flange shape: modified
    • Anti-lock brake sensor: included
    • Condition: new
    • Country of origin: China

    In the box

    One wheel bearing and hub assembly with the anti-lock brake sensor.

    Interchange: 051-6310 · 42450-0E040 · 42450-48020 · 42450-48040
    WE61276 · 516310 · 40744019 · BR930797 · 7700060 · H512420 · 712420 · HA590287

    This part cross-references / interchanges with the following part numbers:

    WE61276, 051-6310, 516310, 40744019, BR930797, 7700060, H512420, 712420, HA590287, 42450-0E040, 4245048020, 42450-48020, 4245048040, 42450-48040, 4.245e45, 4.25e45, 4.25e47

    Frequently Asked Questions

    Is this the rear wheel bearing for the 2008-2013 Toyota Highlander?

    Yes. MOOG 512420 is the rear right wheel bearing and hub assembly for the 2008-2013 Toyota Highlander. The rear left side is a separate part.

    Does a wheel bearing replacement on this hub assembly include the ABS sensor?

    Yes. The anti-lock brake sensor is included with this hub assembly. The listing is one assembly for the rear right side.

    What bolt pattern does this rear hub assembly have?

    MOOG 512420 has 4 flange bolt holes on a 114.3 mm (4.5 in) bolt circle, with a 62 mm brake pilot diameter and a 152 mm flange diameter.

    How can I tell if this wheel bearing and hub assembly is wearing out?

    A humming or growling noise that changes with speed, or play at the wheel, can mean the bearing is wearing. A shop can test it safely.

    Does MOOG 512420 replace number 42450-48040?

    Yes. 42450-48040 is on the interchange list for this rear right wheel bearing and hub assembly, along with 42450-48020 and 42450-0E040.
