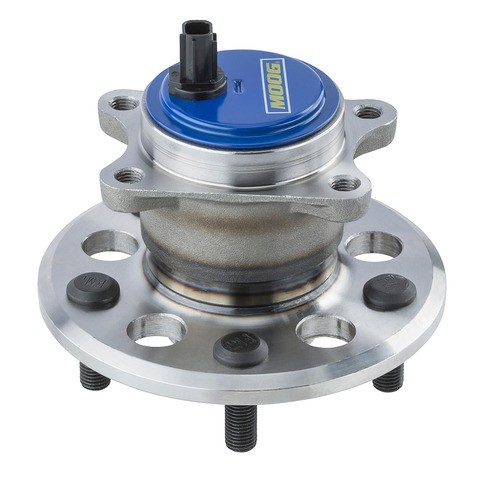

MOOG 512541 rear right wheel bearing and hub assembly for the 2013-2018 Lexus ES300h and other vehicles holds the wheel and lets it spin on the bearing.
- Bearing raceways and rolling elements matched exactly to minimize noise and vibration
- Application-specific design
- Anti-lock brake sensor included
- Design enhancements that extend product life and simplify installation and replacement
- Performance proven and quality tested
Quick facts
- Part: MOOG 512541 wheel bearing and hub assembly
- Fits: 2013-2018 Lexus ES300h and other vehicles
- Position: Rear right
- Condition: New
A humming or growling noise that changes with speed, or vibration from the rear wheel, can mean a worn wheel bearing. A tire, a brake rotor or a suspension part can be behind the same signs, so find the cause before buying.
Fits
This wheel bearing and hub assembly fits the 2013-2018 Lexus ES300h and the 2013-2018 Lexus ES350. The rear axle takes one on each side; this listing is the rear right one, so the rear left is ordered separately and the two are normally fitted together.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Bolt circle diameter: 114.3 mm (4.5 in), 4 flange bolt holes
- Brake pilot diameter: 62 mm
- Flange diameter: 152 mm
- Flange offset: 67.5 mm
- Flange shape: Trapezoid
Build and materials
- Anti-lock brake sensor: included
- Condition: New
- Country of origin: China
In the box
One rear right wheel bearing and hub assembly with the anti-lock brake sensor.
Interchange: WE61929 · 4245033050 · MB86313 · BR931121 · HA590512
This part cross-references / interchanges with the following part numbers:
WE61929, 4245033050, MB86313, BR931121, HA590512
Frequently Asked Questions
Is MOOG 512541 a wheel bearing for the 2013-2018 Lexus ES350 rear right?
Yes. MOOG 512541 is a rear right wheel bearing and hub assembly for the 2013-2018 Lexus ES350, and it also fits the 2013-2018 Lexus ES300h.
Does the MOOG 512541 wheel bearing and hub assembly come with the ABS sensor?
Yes. The anti-lock brake sensor is included with this rear right wheel bearing and hub assembly.
What are the bolt circle and pilot size on the MOOG 512541 wheel bearing and hub assembly?
MOOG 512541 has a 114.3 mm (4.5 in) bolt circle with 4 flange bolt holes, a 62 mm brake pilot diameter and a 152 mm flange diameter.
How do I know if a rear wheel bearing is wearing out?
Common signs are a hum or growl that changes with speed and vibration you feel while driving. Have the car checked promptly, since a shop can test for play at the wheel.
Is WE61929 the same part as the MOOG 512541?
Yes. WE61929 is one of the numbers MOOG 512541 replaces, along with 4245033050 and HA590512.
