Rear Wheel Bearing and Hub Assembly for 2016-2022 Honda Pilot & More - MOOG 512629

$394.99
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512629
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 512629

Vehicles this part fits
    Part number: 512629
    UPC: 019826228314
    Condition: New
    Weight: 7.75 LBS
    Item Package Quantity: 1
    $394.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512629
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:512629
    $394.99
    $394.99

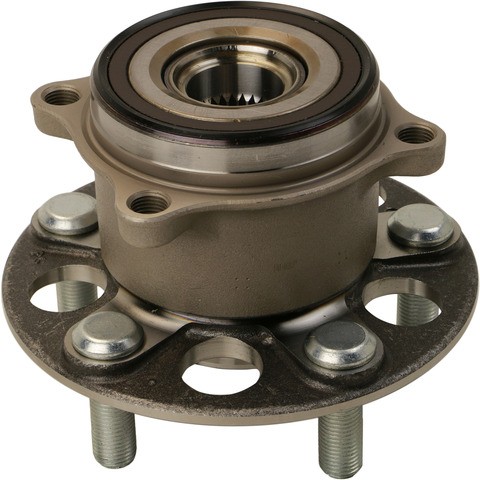

    MOOG 512629 rear wheel bearing and hub assembly for the 2016-2022 Honda Pilot and other vehicles holds the rear wheel and lets it spin on the axle. The bearing and hub come together as one assembly.

    • Design enhancements aimed at longer product life and simpler installation and replacement
    • Precision Matched Components: bearing raceways and rolling elements matched to minimize noise and vibration
    • Performance proven and quality tested hub assembly
    • Application-specific design

    Quick facts

    • Part: MOOG 512629 wheel bearing and hub assembly
    • Fits: 2016-2022 Honda Pilot and other vehicles
    • Position: Rear
    • Condition: New

    A hum or growl that changes with road speed, or play felt at the wheel, can mean this assembly is worn, though a tire problem or a brake rotor can be behind the same noise. Find the source before you order.

    Fits

    It suits a wheel bearing replacement on the 2016-2022 Honda Pilot, and it is also a wheel bearing for the 2019-2023 Honda Passport and the 2017-2020 Acura MDX. The 2016-2022 Honda Pilot takes two. This listing is one assembly for the rear axle; the other rear wheel on that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Bolt circle diameter: 120.100 mm, 4 flange bolt holes
    • Flange diameter: 152.220 mm
    • Brake pilot diameter: 70.050 mm
    • Flange offset: 62.220 mm

    Build and materials

    • Anti-lock brake sensor: not included
    • Condition: New
    • Country of origin: Thailand

    Interchange: 42200TG7A01 · WE61888 · MB60319 · BR931131 · HA590639

    This part cross-references / interchanges with the following part numbers:

    42200TG7A01, WE61888, MB60319, BR931131, HA590639

    Frequently Asked Questions

    Will the MOOG 512629 work as a Honda Pilot wheel bearing on 2016-2022 models?

    Yes. MOOG 512629 is a rear wheel bearing and hub assembly for the 2016-2022 Honda Pilot, and each of those Pilots takes two.

    Is this an Acura MDX wheel bearing for the 2017-2020 model years?

    Yes. MOOG 512629 is a rear wheel bearing and hub assembly for the 2017-2020 Acura MDX, and the MDX takes two.

    Does the MOOG 512629 hub come with an ABS sensor?

    No. The anti-lock brake sensor is not included with this wheel bearing and hub assembly.

    What bolt circle and flange size does this rear hub assembly have?

    It has 4 flange bolt holes on a 120.100 mm bolt circle, a 152.220 mm flange diameter and a 70.050 mm brake pilot diameter.

    Is 42200TG7A01 an interchange number for the MOOG 512629?

    Yes. 42200TG7A01 is listed as an interchange number for MOOG 512629, along with WE61888, MB60319, BR931131 and HA590639.
