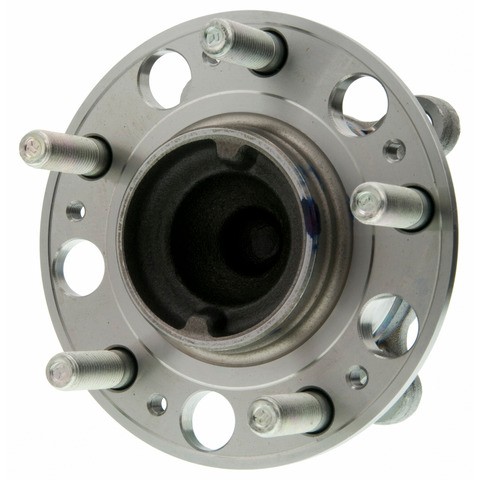

MOOG 513278 front wheel bearing and hub assembly for the 2011-2016 Hyundai Equus and other vehicles connects the front wheel to the vehicle and lets it turn.
- Roll form design for consistent and optimal preload
- Bearing raceways and rolling elements matched through tightly controlled manufacturing to minimize noise and vibration
- Design enhancements that extend product life and simplify installation and replacement
- Performance proven and quality tested for smooth, reliable operation
Quick facts
- Part: MOOG 513278 wheel bearing and hub assembly
- Fits: 2011-2016 Hyundai Equus and other vehicles
- Position: Front
- Condition: New
A hum or growl that rises with speed, or play at the wheel, can mean this wheel bearing and hub assembly is worn, though a tire or a brake rotor can be behind a similar noise, so find the cause first. The front pair is normally replaced together, and this listing is one wheel bearing and hub assembly.
Fits
It fits the 2011-2016 Hyundai Equus and the 2009-2014 Hyundai Genesis. The 2011-2016 Hyundai Equus takes two, as does the 2009-2014 Hyundai Genesis.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 114.3 mm, 4 flange bolt holes
- Brake pilot diameter: 69 mm
- Flange diameter: 139 mm
- Flange offset: 53.4 mm
Build and materials
- ABS sensor: not included
- Condition: New
- Country of origin: China
Interchange: 051-6221 · 51750-3M000
WE61202 · 516221 · 40751003 · 40751003E · BR930725 · 7463050 · 517503M050 · H513278 · PBR930359 · 713278
This part cross-references / interchanges with the following part numbers:
WE61202, 051-6221, 516221, 40751003, 40751003E, BR930725, 7463050, 51750-3M000, 517503M000, 517503M050, H513278, PBR930359, 713278, 513278
Frequently Asked Questions
Does the MOOG 513278 fit the 2009-2014 Hyundai Genesis?
Yes. MOOG 513278 is a front wheel bearing and hub assembly for the 2009-2014 Hyundai Genesis.
Does the MOOG 513278 wheel bearing and hub assembly come with the ABS sensor?
No. MOOG 513278 does not include the anti-lock brake sensor.
What is the bolt pattern on this front wheel bearing and hub assembly?
This front wheel bearing and hub assembly has 4 flange bolt holes on a 114.3 mm bolt circle, with a 69 mm brake pilot diameter and a 139 mm flange diameter.
How can I tell a front wheel bearing is wearing out?
A hum or growl that changes with speed, or looseness at the wheel, can be signs of wear. Have the car checked promptly rather than driving on it.
What does the roll form design do on this MOOG wheel bearing and hub assembly?
The roll form design is there to hold preload consistent and optimal. The bearing raceways and rolling elements are matched to keep noise and vibration low.
