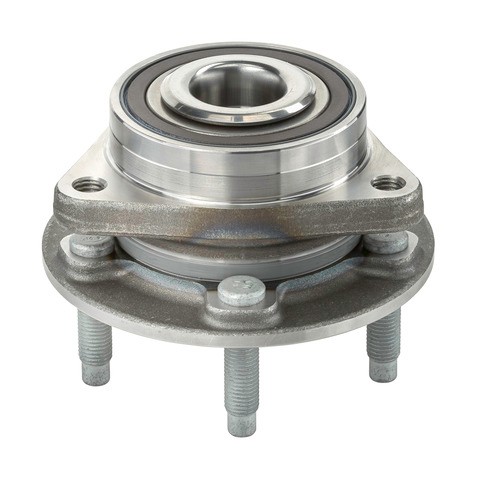

MOOG 513403 front wheel bearing and hub assembly for the 2022-2023 Chevrolet Bolt EUV and other vehicles carries the wheel and lets it spin.
- Roll form design for consistent and optimal preload
- Bearing raceways and rolling elements matched through tightly controlled manufacturing to minimize noise and vibration
- Design enhancements aimed at extending product life and simplifying installation and replacement
- Engineered to overcome problems and deliver smooth, reliable performance
Quick facts
- Part: MOOG 513403 wheel bearing and hub assembly
- Fits: 2022-2023 Chevrolet Bolt EUV and other vehicles
- Position: Front
- Condition: New
A worn wheel bearing can show up as a humming or growling noise that changes with road speed, or as vibration felt through the car. If the bearing is the cause, this assembly replaces it. Tires with uneven wear or damage can make a similar noise, so look them over first with the engine off and leave deeper tests to a shop.
Fits
This front assembly is a direct-fit replacement for the 2022-2023 Chevrolet Bolt EUV, the 2017-2023 Chevrolet Bolt EV and the 2016-2019 Chevrolet Volt. The listing is one assembly, so the opposite front wheel on the same axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 105.2 mm, 3 flange bolt holes
- Brake pilot diameter: 59.9 mm
- Flange diameter: 136 mm
- Flange offset: 42 mm
Build and materials
- Type: wheel bearing and hub assembly
- Condition: New
- Country of origin: Slovakia
In the box
One wheel bearing and hub assembly. These vehicles take two. The ABS sensor is not included.
Interchange: WE61832 · 103325 · 13510543 · 13524087 · 13580304 · MB50320 · BR930960
This part cross-references / interchanges with the following part numbers:
WE61832, 103325, 13510543, 13524087, 13580304, MB50320, BR930960, 513403
Frequently Asked Questions
Will the MOOG 513403 wheel bearing fit a 2016-2019 Chevrolet Volt?
Yes. MOOG 513403 is a front wheel bearing and hub assembly for the 2016-2019 Chevrolet Volt, and it also fits the 2017-2023 Chevrolet Bolt EV.
Does the MOOG 513403 hub assembly come with the ABS sensor?
No. The ABS sensor is not included. MOOG 513403 is one front wheel bearing and hub assembly.
What is the bolt circle on this front hub assembly?
The bolt circle diameter is 105.2 mm with 3 flange bolt holes. The brake pilot diameter is 59.9 mm and the flange diameter is 136 mm.
What noises can a worn front wheel bearing make?
A worn bearing can make a humming or growling noise that changes with road speed, and it can also cause vibration felt through the car.
What does the roll form design do on this MOOG hub assembly?
The roll form design is there to give consistent and optimal preload. Matched raceways and rolling elements help keep noise and vibration down.
