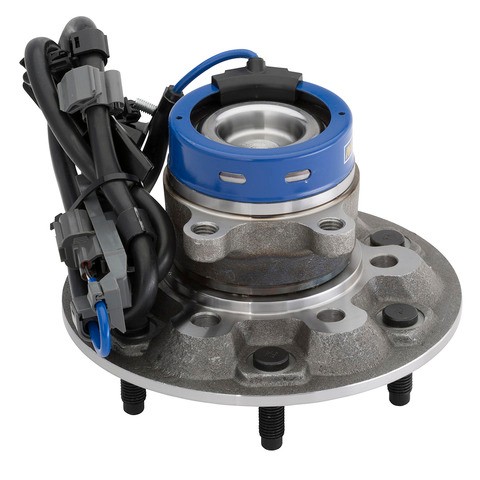

MOOG 515107 front right wheel bearing and hub assembly for the 2004-2008 Chevrolet Colorado and other vehicles holds the wheel on the axle and lets it turn smoothly.
- Roll form design for consistent and optimal preload
- Wheel studs with a protective coating that helps prevent rust and corrosion, for easier removal and proper torquing of the wheel nut
- MOOG Abrasion-Resistant ABS Cord made from a blended material that increases abrasion resistance
Quick facts
- Part: MOOG 515107 wheel bearing and hub assembly
- Fits: the 2004-2008 Chevrolet Colorado and other vehicles
- Position: Front right
- Condition: New
A hum or growl that changes with speed, or play at the wheel, can mean the front right bearing is worn. These signs alone do not prove the bearing is the problem, since an unevenly worn tire can make a similar noise.
Fits
This wheel bearing and hub assembly fits the 2004-2008 Chevrolet Colorado, the 2006-2008 GMC Canyon and the 2007-2008 Isuzu I-290, and each front right position takes one. This listing is one side; the front left on that axle is a separate part and is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Bolt circle diameter: 139.700 mm (5.500 in)
- Flange bolt holes: 3
- Brake pilot diameter: 100.000 mm
- Flange diameter: 184.200 mm
- Flange offset: 67.100 mm
Build and materials
- Anti-lock brake sensor: included
- Wheel studs: protective coating
- Condition: New
- Country of origin: China
In the box
One front right wheel bearing and hub assembly with the anti-lock brake sensor.
Interchange: 051-6366 · 8-15178-883-0
FW322 · WE61765 · BR930702 · NT515107 · 102157 · 15176700 · 15177000 · 15178883 · H515107 · 715107 · BR930430 · HA590059
This part cross-references / interchanges with the following part numbers:
FW322, WE61765, 051-6366, BR930702, NT515107, 102157, 15176700, 15177000, 15178883, 8151788830, 8-15178-883-0, H515107, 715107, BR930430, HA590059
Frequently Asked Questions
Is MOOG 515107 a Chevy Colorado wheel bearing for the 2004-2008 model years?
Yes, MOOG 515107 is the front right wheel bearing and hub assembly for the 2004-2008 Chevrolet Colorado. If your vehicle is different, look it up in the "Vehicles it fits" section.
Does MOOG 515107 come with the anti-lock brake sensor?
Yes. The anti-lock brake sensor is included with this MOOG 515107 front right wheel bearing and hub assembly.
What is the bolt circle on this front right wheel bearing and hub assembly?
The bolt circle diameter is 139.700 mm (5.500 in), with three flange bolt holes and a brake pilot diameter of 100.000 mm.
What does a failing front right wheel bearing and hub assembly sound like?
A humming or growling noise that changes with speed, or play at the front right wheel, can mean the bearing is worn. Have it checked or replaced promptly rather than driving on it.
Is MOOG 515107 interchangeable with HA590059?
Yes. HA590059 is on the interchange list for MOOG 515107, so it is one of the numbers this wheel bearing and hub assembly replaces.
