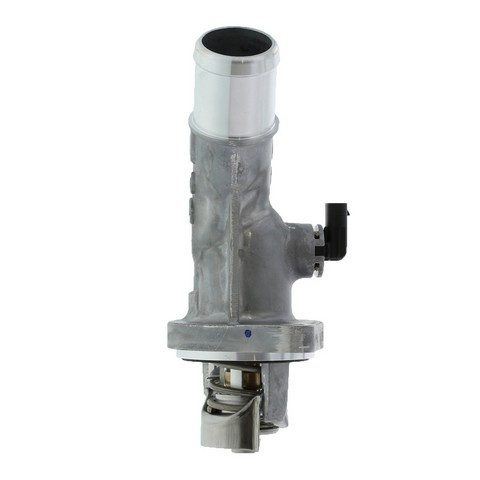

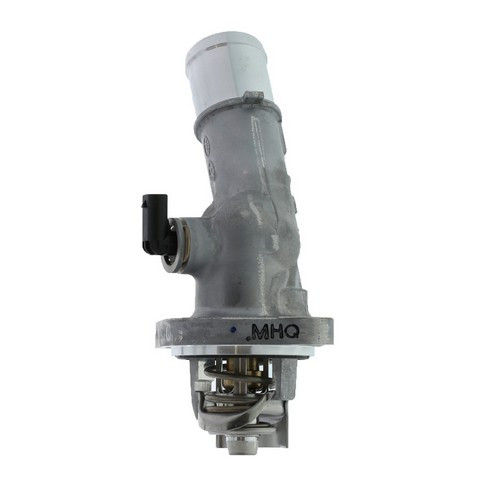

Motorad 1102-212 engine coolant thermostat housing assembly for the 2017-2018 Kia Forte 4-cylinder 2.0L holds the thermostat that regulates coolant flow and engine temperature.
- Thermostat built into the housing, rated 212 degrees, starts to open at 100 °C
- Copper case and wax compound for rapid response to coolant temperature changes
- Aluminum, copper and stainless steel construction
- Bleeder hole in the housing and a rubber O-ring seal included
- Every housing assembly is 100% tested and calibrated
Quick facts
- Part: Motorad 1102-212 engine coolant thermostat housing assembly
- Fits: 2017-2018 Kia Forte 4-cylinder 2.0L
- Material: Aluminum, Copper, Stainless Steel
- Condition: New
A coolant leak around the housing, an engine that runs hotter than normal or one that warms up slowly can all mean the thermostat housing assembly needs replacing. A leaking hose, a weak water pump or a faulty radiator fan can be behind those signs too, so find the real cause before you buy.
Fits
It is a direct-fit replacement for the 2017-2018 Kia Forte 4-cylinder 2.0L, which takes one. It has an original equipment design, is made by an OE supplier to OEM specifications and processes, and meets or exceeds OEM standards.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2
- Inside diameter: 33.27 mm (1.31 in)
- Outlet port outside diameter: 33.27 mm (1.31 in)
- Outlet ports: 1
Build and materials
- Material: Aluminum, Copper, Stainless Steel
- Thermostat: 212 degrees, mechanical actuator, disk valve, starts to open at 100 °C
- Seal: rubber O-ring, quantity 1
- Bleeder hole: yes
- Grade: standard replacement
- Condition: new
- Country of origin: Israel
In the box
One thermostat housing assembly with its built-in 212-degree thermostat, one rubber O-ring seal and a sensor. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 212-2011
255002E080 · 11022 · 91102212
This part cross-references / interchanges with the following part numbers:
212-2011, 1102-212, 255002E080, 11022, NI, 91102212
Frequently Asked Questions
Will the Motorad 1102-212 fit a 2017-2018 Kia Forte 4-cylinder 2.0L?
Yes. The Motorad 1102-212 thermostat housing assembly is listed for the 2017-2018 Kia Forte 4-cylinder 2.0L, and that engine takes one.
Is a seal included with the Motorad engine coolant thermostat housing assembly?
Yes. This Motorad 1102-212 includes a rubber O-ring seal, plus the built-in 212-degree thermostat and a sensor. Mounting bolts are not included, so plan on new ones.
At what temperature does the 1102-212 thermostat start to open?
The thermostat in this housing assembly is a 212-degree unit and starts to open at 100 °C. It has a disk valve with a mechanical actuator.
How can I tell if a thermostat housing is leaking?
With the engine off and cool, look around the housing and its seal for wet coolant residue, crusty deposits or cracks. A temperature gauge that reads high can also be a sign.
Does the Motorad 1102-212 replace the 255002E080 number?
Yes. 255002E080 is a listed cross-reference for this Motorad 1102-212 thermostat housing assembly, along with 212-2011, 11022 and 91102212.
