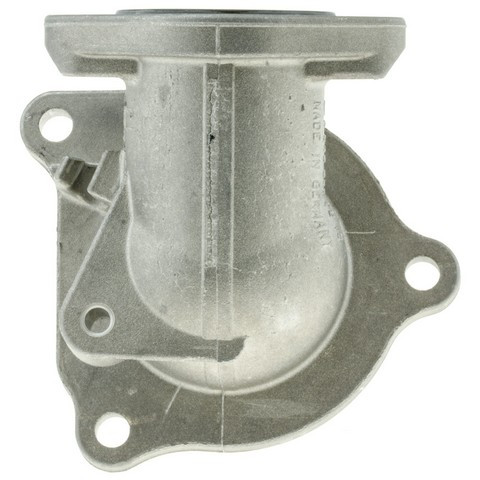

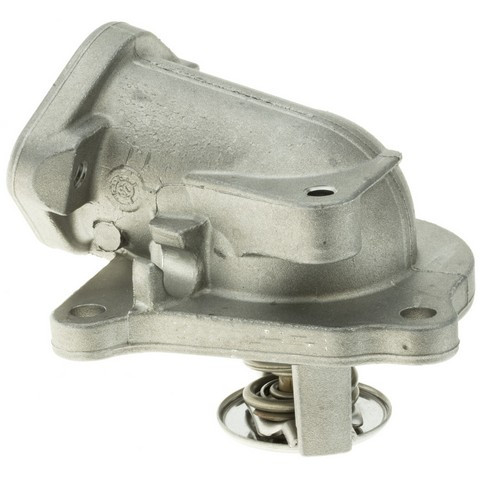

Motorad 939-189 thermostat for the 2007-2009 Dodge Sprinter 2500 V6 3.0L and other vehicles controls coolant flow so the engine reaches and holds its operating temperature. Also known as an engine coolant thermostat, it comes as an integrated housing with its seal.
- Copper case and wax compound that respond quickly to coolant temperature changes
- Start-to-open temperature of 87.22 °C (189 °F)
- Mechanical disk valve with a bleeder hole
- Rubber O-ring seal included with the integrated housing
- 100% tested and calibrated for consistent response to cooling system needs
Quick facts
- Part: Motorad 939-189 thermostat
- Also called: engine coolant thermostat
- Fits: 2007-2009 Dodge Sprinter 2500 V6 3.0L and other vehicles
- Material: Aluminum, Copper, Steel
- Condition: New
An engine that runs hotter or cooler than normal, a temperature gauge that behaves oddly, or coolant seeping around the housing can point to a worn thermostat. A weak water pump, a low coolant level, a stuck radiator fan or a faulty coolant temperature sensor can be behind those signs too, so find the cause before buying. The engine takes one thermostat.
Fits
This thermostat is listed for Sprinter models sold under the Dodge and Freightliner names. Besides the 2007-2009 Dodge Sprinter 2500 V6 3.0L, those include the 2007-2009 Dodge Sprinter 3500 V6 3.0L and the 2007-2009 Freightliner Sprinter 2500 V6 3.0L. Its original-equipment design makes it a direct-fit replacement for these vehicles. If your Sprinter is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Outlet ports: 1
- Outlet port outside diameter: 31.75 mm (1.25 in)
- Bypass outside diameter: 36.32 mm
- Bypass length: 27.43 mm (1.08 in)
- Start-to-open temperature: 87.22 °C (189 °F)
Build and materials
- Type: integrated housing thermostat, mechanical actuator, disk valve
- Material: Aluminum, Copper, Steel
- Seal: one rubber O-ring
- Bleeder hole: yes
- Condition: New
- Country of origin: China
In the box
One thermostat in its housing with one rubber O-ring seal. Mounting hardware and a sensor are not included, so plan on new bolts rather than reusing the old ones.
Interchange: HT189-939 · 902-3043
93989 · 68014045AA · 68014045AB · 68014141AA · 86107 · TM2887 · 59398 · P93989 · 50068 · 9939189
This part cross-references / interchanges with the following part numbers:
HT189-939, 93989, 68014045AA, 68014045AB, 68014141AA, 902-3043, 939-189, 86107, TM2887, 59398, P93989, 50068, 9939189
Frequently Asked Questions
Does the Motorad 939-189 thermostat fit the 2007-2009 Dodge Sprinter 3500 V6 3.0L?
Yes. Motorad 939-189 is listed for the 2007-2009 Dodge Sprinter 3500 V6 3.0L and the 2007-2009 Freightliner Sprinter 2500 V6 3.0L, along with other Sprinter models.
Does the Motorad 939-189 thermostat come with a seal?
Yes. Motorad 939-189 includes one rubber O-ring seal. Mounting hardware is not included, so plan on new bolts.
At what temperature does this Motorad thermostat start to open?
This thermostat starts to open at 87.22 °C (189 °F). It uses a mechanical actuator with a disk valve and has a bleeder hole.
What can a failing integrated housing thermostat cause?
The engine may run hotter or cooler than normal, or coolant may seep around the housing. A shop can test the thermostat if the cause is not obvious.
What size is the outlet port on this thermostat housing?
The outlet port is 31.75 mm (1.25 in) across on the outside, and the bypass is 36.32 mm in outside diameter. The housing has 3 mounting holes.
