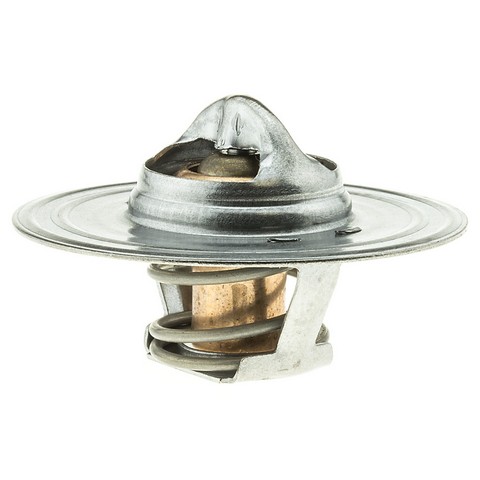

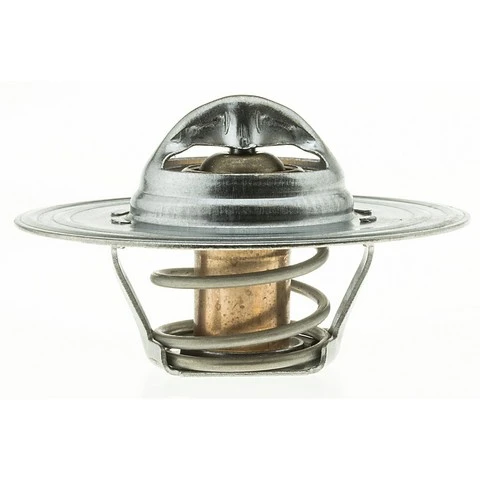

Keep coolant flow in step with engine temperature with the Motorad engine coolant thermostat, part number 206-195, a 195-degree thermostat made by an OE supplier. Its original-equipment design makes it a direct-fit replacement for many vehicles, among them the 1966-1978 Dodge Charger (V8-5.2L, V8-5.6L, V8-5.9L, V8-6.3L, V8-6.6L, V8-7.0L, V8-7.2L) and 1994 Chevrolet C1500 (L6-4.1L). See the "Vehicles it fits" section for the full list of applications.
Motorad builds this thermostat with OEM-quality materials and safety standards, following OEM specifications and processes. It is designed to stand up to demanding automotive cooling systems.
- Stainless steel and copper construction: Built from high-grade stainless steel and copper. The copper case and wax compound are designed to respond rapidly to changes in coolant temperature.
- 195°F rating: Begins to open at 90.56°C (195°F) and is designed for a consistent, precise response to cooling system needs.
- Tested and calibrated: Every unit is 100% tested and calibrated. The part is OEM grade and meets or exceeds OEM standards.
- Specifications: The sealing flange outside diameter is 2.49 in (63.25 mm) and the flange thickness is 0.06 in (1.52 mm). Height is 1.48 in (37.59 mm), and height between flanges is 0.81 in (20.50 mm). Standard, non-electric design.
The listed applications use one thermostat, and the package contains one. A gasket or seal is required for installation but is not included, and no installation tool is supplied. Country of origin: Israel.
Signs a thermostat may need replacing include overheating, a slow warm-up, weak heater output or an erratic temperature gauge. Other cooling-system faults can cause the same symptoms, so diagnose the cause before replacing.
Interchange: 1601-290206 · 3479-TS
12T6E · 291 · 3479 · 13079 · 13479 · 3864135 · 15479BP · 20695 · P3479 · 9206195 · 1601290206 · 3479TS
This part cross-references / interchanges with the following part numbers:
12T6E, 1601-290206, 291, 3479, 206-195, 13079, 13479, 3864135, 15479BP, 3479-TS, 20695, P3479, 9206195
Frequently Asked Questions
What temperature is the Motorad 206-195 thermostat rated for?
It is a 195-degree thermostat with a start-to-open temperature of 90.56°C (195°F).
Is this a Dodge Charger coolant thermostat for a 1966-1978 Dodge Charger V8-5.2L?
Yes. It is listed for the 1966-1978 Dodge Charger with engines including V8-5.2L, V8-5.6L, V8-6.3L and V8-7.2L. Check the "Vehicles it fits" section for your exact year and engine.
Where can I find a Motorad thermostat cross reference for 206-195?
The Interchange line lists the numbers it replaces, including 1601-290206, 3479-TS, 12T6E, 13079, 3864135, 15479BP and 9206195.
Does this thermostat come with a gasket?
No. A gasket or seal is required for installation but is not included, and no installation tool is supplied, so order the correct gasket for your application.
What are signs a thermostat may need replacing?
Common signs include overheating, a slow warm-up, weak heater output or an erratic temperature gauge. Other cooling-system faults can cause similar symptoms, so diagnose before replacing.
