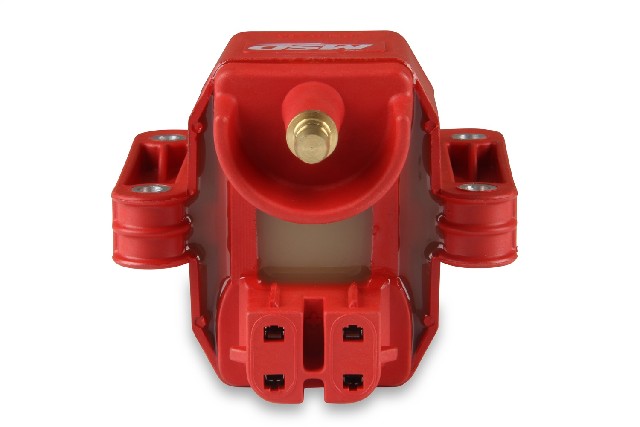

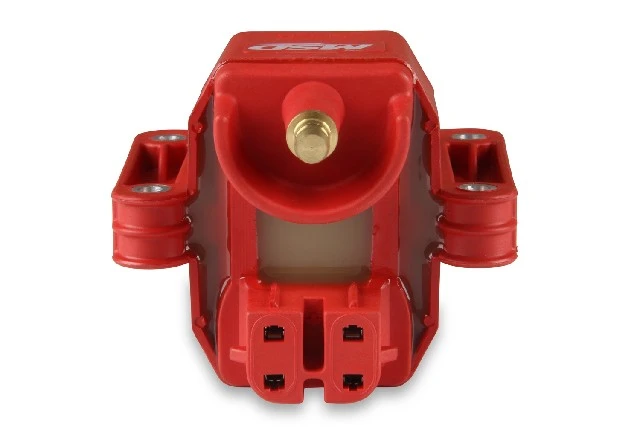

MSD Ignition Coil P/N:8226

GM Dual Connection Ignition Coil; Direct Replacement; 5.6 mH Inductance; 44000 Max Voltage; 220 ma Peak Current; 300 uS Spark Duration; 100:1 Turns Ratio; Red; Single;

GM Dual Connection Ignition Coil

• Top off your GM Ignition system with these great new replacement coils. The GM Coils have MSD performance in factory-style housings! MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks. The MSD Blaster GM Coil is designed to produce increased voltage and energy over the stock GM Coil. To get even more ignition performance, install an MSD Ignition Control with a PN 8876 Harness for a direct plug-in installation.
• Direct performance replacement for GM dual connector coil
• 100:1 Turns Ratio
• Lower Primary Resistance Produces High Voltage Output
• Works w/Stock Ignition As Well As MSD Ignitions
• CARB E.O. Approved
