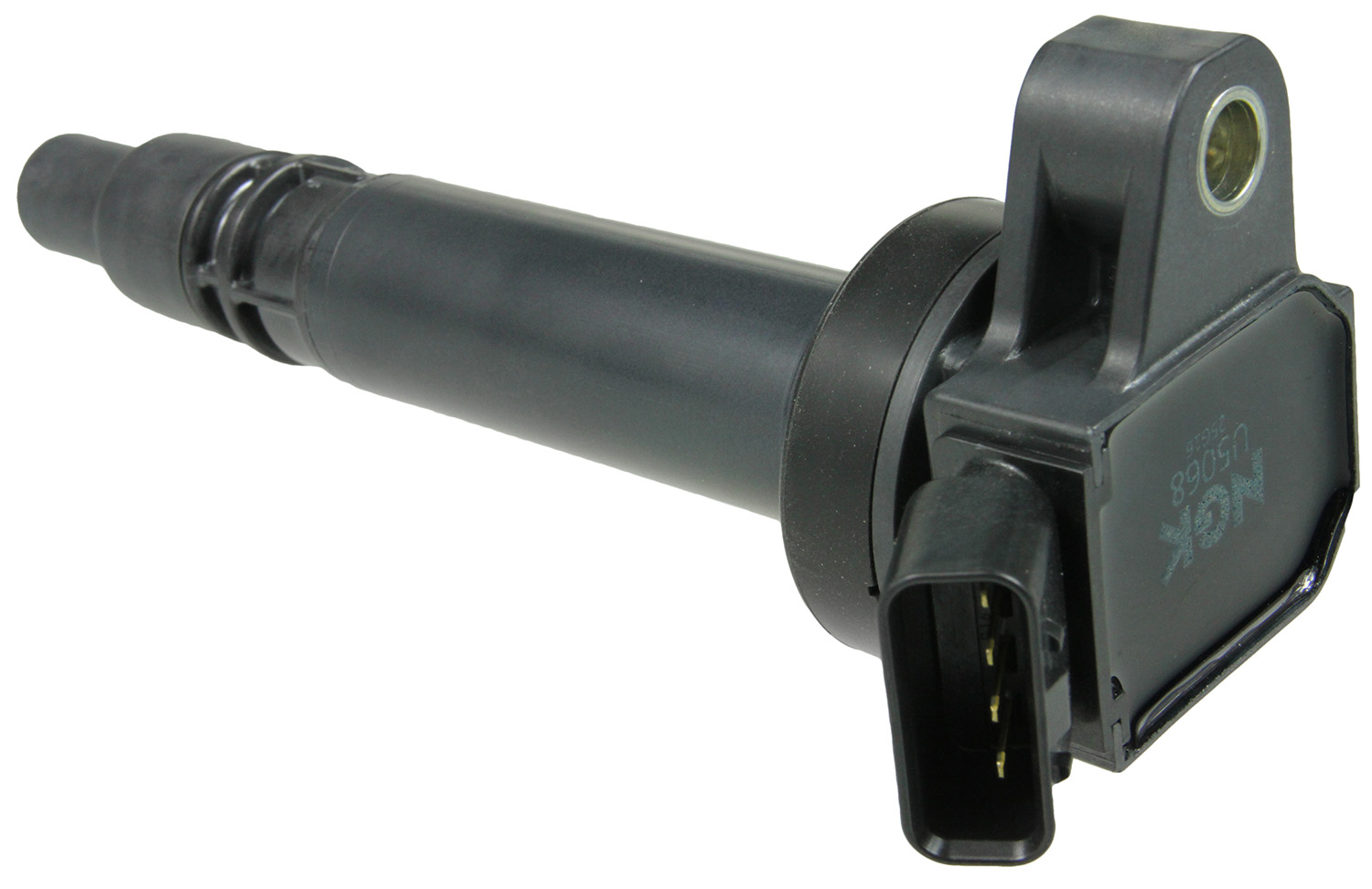

Ignition Coil for 2005-2006 Toyota Corolla & More - NGK 48966

NGK 48966 ignition coil for the 2005-2006 Toyota Corolla 4-cylinder 1.8L and other vehicles steps up battery voltage to fire a spark plug. This NGK ignition coil is a distributorless coil-on-plug design.

• Vacuum-sealed epoxy resin and thermoplastic housing for dielectric strength and voltage insulation
• Precision coil windings and laminations to maximize output
• Custom NGK ASIC chipset to optimize efficiency and prevent component damage
• Flow and stress modeling used to spot and avoid common coil failure points
• Extreme testing passed during manufacturing

Quick facts

• Part: NGK 48966 ignition coil
• Fits: 2005-2006 Toyota Corolla 4-cylinder 1.8L and other vehicles
• Condition: New

Misfires, a rough idle or a lit check-engine light can mean a coil is weakening, though a worn spark plug or a damaged wiring connector can be behind the same signs, so trace the cause before buying coils.

Fits

This pencil-type coil is made for the 2005-2006 Toyota Corolla 4-cylinder 1.8L, the 2005-2011 Lotus Elise 4-cylinder 1.8L and the 2006-2010 Lotus Exige 4-cylinder 1.8L. One coil goes on each cylinder, so these engines take four. Open the "Vehicles it fits" section to check your exact model and engine.

Specifications

In the box

One ignition coil with its ignition control module and high-temperature coil boot; jumper harnesses are included where required.

Interchange: 178-8398 · 673-1305 · UF-314 · 90919-02238 · 921-2121
1415155Y · E344 · GN10333 · IC444 · 88970216 · U5068
