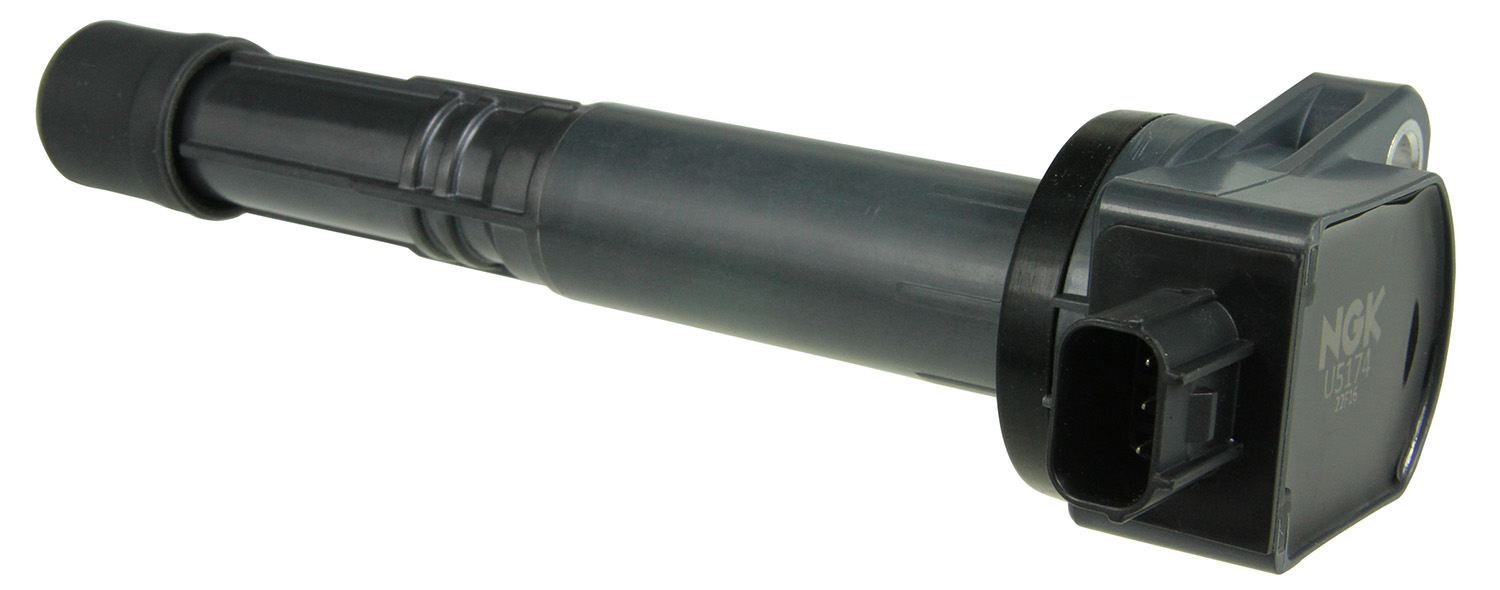

NGK 48980 ignition coil for the 2008-2012 Honda Accord 4-cylinder 2.4L and other vehicles steps battery voltage up to the high voltage a spark plug needs to fire. This coil is a distributorless, coil-on-plug (pencil type) unit.
- Vacuum-sealed epoxy resin and thermoplastic coil housing for dielectric strength, voltage insulation and durability
- Precision coil windings and laminations, plus a custom NGK ASIC chipset for efficiency and protection against component damage
- Coils pass extreme testing during manufacturing to meet durability and quality standards
- Advanced flow and stress modeling used to find and avoid common coil failure points
Quick facts
- Part: NGK 48980 ignition coil
- Fits: 2008-2012 Honda Accord 4-cylinder 2.4L and other vehicles
Worn spark plugs or a damaged connector can also be behind a misfire, a rough idle or a check engine light, so pin down which part is at fault before you buy a coil. If a failed coil is the cause, this one replaces it.
Fits
It is a direct-fit replacement for a wide range of Honda and Acura models, including the 2008-2012 Honda Accord 4-cylinder 2.4L, the 2012-2015 Honda Civic 4-cylinder 2.4L and the 2010-2014 Honda CR-V 4-cylinder 2.4L; four coils go on every one of those engines. If your car is not one of those, run its year and engine through the "Vehicles it fits" section before you order.
Specifications
Fit and size
- Quantity per vehicle: 4
- Connector quantity: 1
Build and materials
- Type: coil-on-plug (pencil type), distributorless
- NGK part number: U5174
- Warranty: NGK 3 year/36,000 mile warranty
In the box
One ignition coil with an ignition control module and a high-temperature coil boot; jumper harnesses are included where the application requires them.
Interchange: 2505-425451 · 178-8478 · 673-2313 · 30520-R40-007 · UF-602 · 36-8164 · 921-2149
E1102 · GN10369 · IC692 · U5174
This part cross-references / interchanges with the following part numbers:
U5174, 2505-425451, E1102, 178-8478, 673-2313, GN10369, IC692, 30520-R40-007, UF602, 48980, 36-8164, UF-602, 921-2149
Frequently Asked Questions
Is NGK 48980 the right ignition coil for a 2008-2012 Honda Accord 4-cylinder 2.4L?
Yes. NGK 48980 is listed for the 2008-2012 Honda Accord 4-cylinder 2.4L, and that engine takes four coils.
Can I use this ignition coil in a 2012-2015 Honda Civic 4-cylinder 2.4L?
Yes. NGK 48980 is also listed for the 2012-2015 Honda Civic 4-cylinder 2.4L, which takes four as well.
Is NGK coil pack 48980 sold as one coil?
This listing is one pencil-type, coil-on-plug ignition coil. Each listed engine takes four, so order the quantity your engine needs.
What comes with this coil from NGK, 48980?
It comes with an ignition control module and a high-temperature coil boot. Jumper harnesses are included where the application requires them.
Is NGK U5174 the same coil as 48980?
Yes. This ignition coil carries both numbers, 48980 and U5174, so a search under either one finds the same part.
