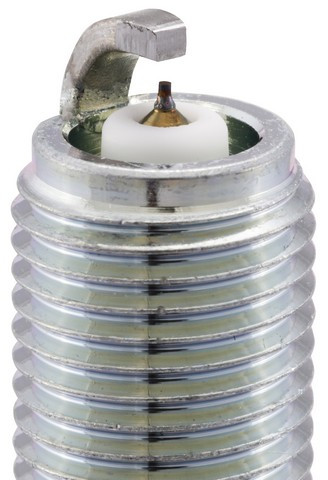

The NGK 96107 laser iridium high ignitability spark plug for the 2023-2024 Kawasaki KRF1000 Teryx KRX 1000 ES 999cc and other vehicles pairs an iridium alloy center electrode with a square platinum ground electrode to light the air-fuel mixture in the cylinder.
- High ignitability design with an SPE tip and an iridium alloy center electrode
- Iridium's density is 6x that of platinum, and its melting point is extremely high
- Square platinum ground electrode shape for ignitability and service life in high-heat engines
- Solid copper core, 98% pure, for heat dissipation, conductivity and ultra wide heat ranges
- Trivalent metal plating with anti-corrosion and anti-seizing properties for easier installation and removal
- Recommended usage: vehicles with OE SPE iridium alloy plugs
A worn plug can show up as a misfire, a rough idle or slow starting. Before you replace the plugs, rule out a bad coil, damaged wiring or a fuel problem, since any of those can cause trouble like that too. The 999cc engine takes two plugs, sold one per listing.
This plug is listed for a wide range of Kawasaki Teryx models, including the 2020-2024 Kawasaki KRF1000 Teryx KRX 1000 999cc and the 2021-2024 Kawasaki KRF1000 Teryx KRX 1000 Special Edition 999cc.
Specifications
Fit and size
- Quantity per vehicle: 2
- Thread size: M10 - 1.0, metric
- Reach: 26.5 mm (1.043 in)
- Seat type: Flat
- Heat range: 9
- Pre-gap size: 0.9 mm (.036 in)
Build and materials
- Center electrode: iridium tip, copper core, fine wire design
- Ground electrode: platinum tip, nickel core, J-gap
- Insulator: ceramic
- Terminal: non-removable nut
- Resistor: yes, 5000 ohm
- Country of origin: Japan
In the box: the spark plug and a crush washer.
Interchange: 920700721 · SILMAR9F9
This part cross-references / interchanges with the following part numbers:
920700721, 96107, SILMAR9F9
Frequently Asked Questions
Does the NGK 96107 fit a 2020-2024 Kawasaki KRF1000 Teryx KRX 1000 999cc?
Yes, NGK 96107 is listed for the 2020-2024 Kawasaki KRF1000 Teryx KRX 1000 999cc, which takes two plugs. If your machine is a different Kawasaki, look it up in the "Vehicles it fits" section.
Does the NGK 96107 spark plug come with a washer?
Yes, NGK 96107 includes a crush washer and has a flat seat. It also has a pre-gap size of 0.9 mm (.036 in).
What thread size and reach does this spark plug have?
NGK 96107 has an M10 - 1.0 metric thread and a 26.5 mm (1.043 in) reach. Its heat range is 9.
What sets this NGK laser iridium high ignitability spark plug apart from a platinum plug?
This plug's center electrode is an iridium alloy, and iridium's density is 6x that of platinum with an extremely high melting point. The ground electrode also has a square platinum SPE shape.
Is this a resistor spark plug?
Yes, this plug is a resistor type with a rating of 5000 ohm. It also has a non-removable nut terminal.
