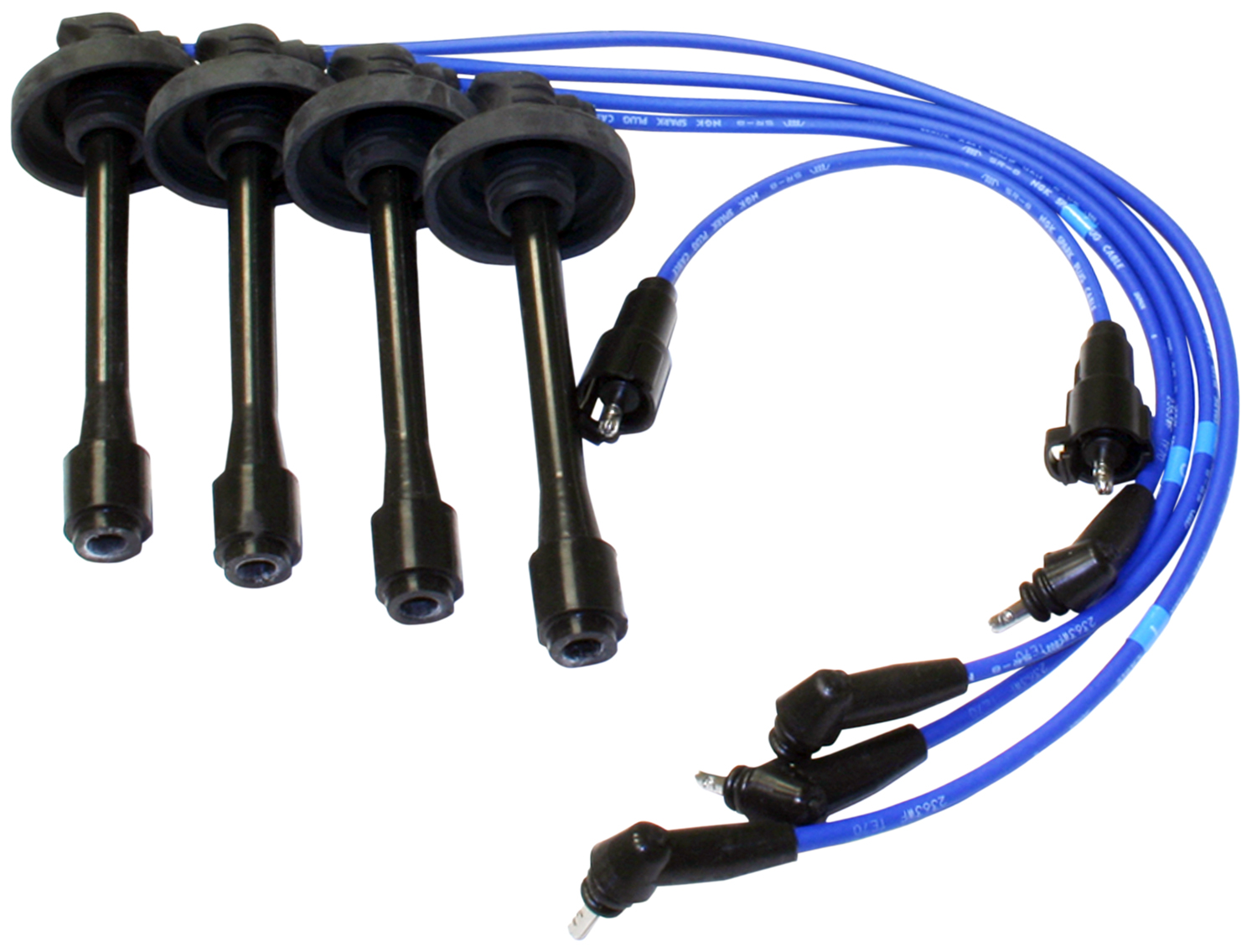

NGK 4414 spark plug wire set for the 1991-1992 Toyota MR2 4-cylinder 2.2L carries high-voltage current to the spark plugs. The set has 4 wires with a coil lead, and each NGK wire uses a resistor cable for uniform resistance.
- Variable pitch winding over a Ferrite magnetic alloy coating for ultra low resistance and interference protection
- Magnetic core cable that suppresses EMI/RFI noise across the frequency spectrum
- Outer jacket withstands temperatures greater than 250 degrees C; inner insulation is EPDM or silicone
- Spark plug boots glued to the cable with silicone sealer for a watertight seal
- Stainless steel terminals with up to 3 serrated crimps and a locking spring clip with corrosion-resistant plating
Quick facts
- Part: NGK 4414 spark plug wire set
- Fits: 1991-1992 Toyota MR2 4-cylinder 2.2L
- Condition: New
A misfire, rough idle or hard starting can mean worn wires, and cracked insulation or burnt boots can be seen on a cool, stopped engine. Those signs alone do not prove the wires are the problem; worn spark plugs are another common cause. If the wires are at fault, this set replaces them.
Fits
Built to OEM tolerances, this set fits the 1991-1992 Toyota MR2 4-cylinder 2.2L, and that car takes one set.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires: 4, with coil lead
Build and materials
- Cable: magnetic core, variable pitch
- Terminals: stainless steel
- Condition: New
- NGK part number: RC-TE70
- Warranty: NGK limited lifetime warranty; see package for details
In the box
One spark plug wire set: 4 wires with a coil lead.
Installation notes
- Cylinder lead identification tags, where possible, make installation easier.
Interchange: 175-6043 · 35-4095 · 671-4164 · 35-PF57534 · RC-TE70
CH5411 · 700753 · 09127 · 09351 · 9127 · 9351 · 125411 · 154032 · 5403 · 55944
This part cross-references / interchanges with the following part numbers:
RC-TE70, CH5411, 175-6043, 700753, 09127, 09351, 9127, 9351, 35-4095, 671-4164, 4414, 125411, 35-PF57534, 154032, 5403, 55944
Frequently Asked Questions
Is this NGK wire set made for the 1991-1992 Toyota MR2 4-cylinder 2.2L?
Yes. NGK 4414 is listed for the 1991-1992 Toyota MR2 4-cylinder 2.2L (L4-2.2L).
Do these NGK plug wires include a coil lead?
Yes. NGK 4414 is a set of 4 wires with a coil lead.
What are the terminals on these NGK spark plug wire sets made of?
Stainless steel, with up to 3 serrated crimps that bite into the cable jacket and inner insulation. A locking C-shaped spring clip with corrosion-resistant plating secures the spark plug terminal.
How much heat can the outer jacket on these NGK blue spark plug wires take?
The outer jacket on this spark plug wire set is built to withstand temperatures greater than 250 degrees C. The inner insulation is EPDM or silicone for dielectric strength.
Is NGK RC-TE70 the same wire set as 4414?
Yes. RC-TE70 is NGK's other number for this set, alongside 4414, so either number finds the same part.
