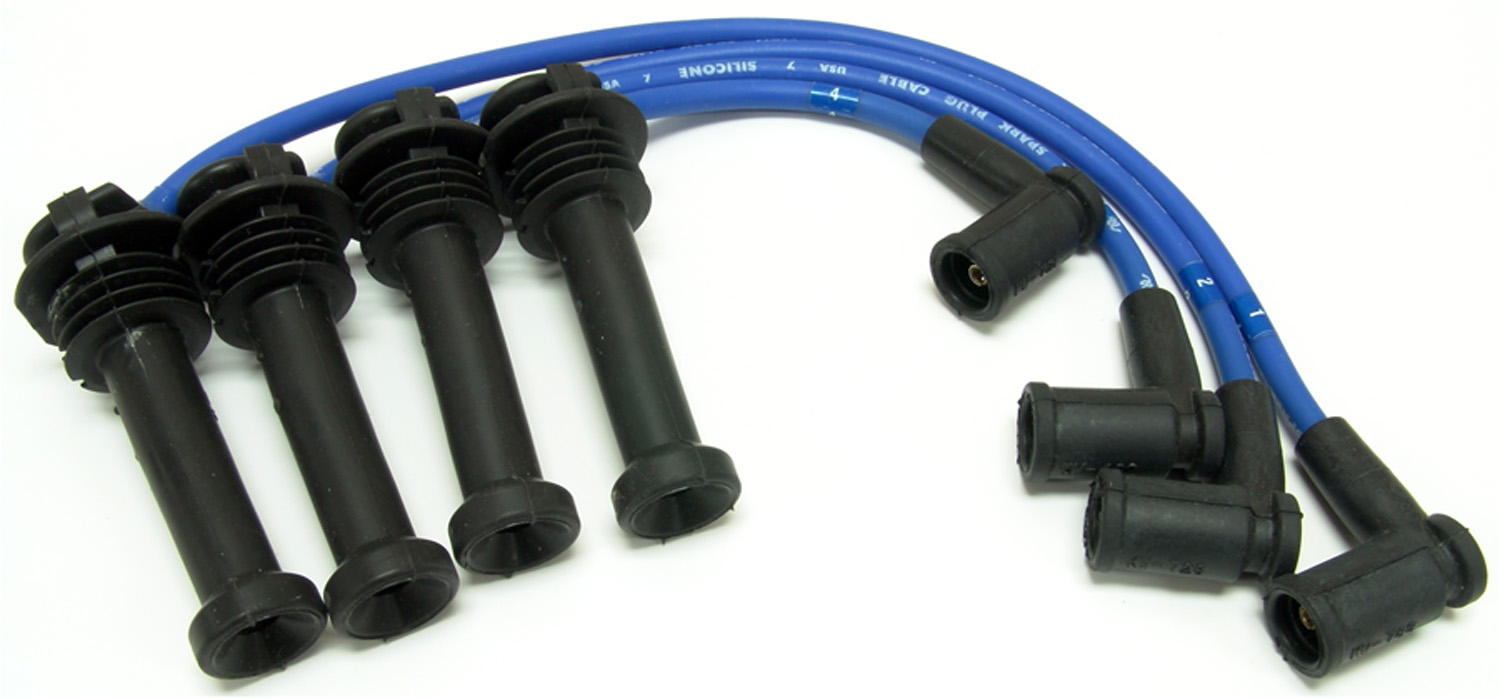

NGK 52028 spark plug wire set for the 2001-2004 Ford Escape 4-cylinder 2.0L and other vehicles carries high voltage to the spark plugs. The NGK wire set has four wires.
- Stainless steel winding over a ferrite magnetic core for ultra-low resistance and EMI/RFI noise suppression
- High-temp silicone outer jacket built to withstand temperatures greater than 250 degrees C
- Inner insulation of EPDM or silicone for dielectric strength against high voltage
- Stainless steel terminals with up to 3 serrated crimps that bite into the cable jacket and inner insulation
- Spark plug boots glued to the cable with a silicone sealer for a watertight seal
- Locking C-shaped spring clip with corrosion-resistant plating at the spark plug terminal
Quick facts
- Part: NGK 52028 spark plug wire set
- Fits: 2001-2004 Ford Escape 4-cylinder 2.0L and other vehicles
- Condition: New
A misfire, a rough idle or cracked, burned or chafed insulation can mean the wires are worn, though the spark plugs or the ignition coil can be behind the same symptoms, so find the real cause before you replace anything.
Fits
This set is listed for a wide range of Ford, Mazda and Mercury models, such as the 2000-2004 Ford Focus 4-cylinder 2.0L and the 2001-2004 Mazda Tribute 4-cylinder 2.0L. Open the Buyer's Guide tab to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires in the set: 4
Build and materials
- Outer jacket: silicone
- Core: ferrite magnetic core with stainless steel winding
- Terminals: stainless steel
- Condition: New
- NGK part number: RC-FDZ070
- Warranty: NGK limited lifetime warranty; see package for details

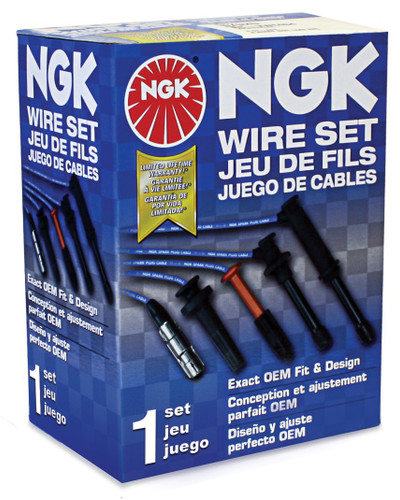

In the box
One set of four spark plug wires. This listing is one set, and the vehicle takes one set.
Installation notes
- Cylinder lead identification tags, where possible, make installation easier.
Interchange: 175-6223 · 35-4021 · 671-4061 · 35-PF87595 · RC-FDZ070
97042 · CH8439 · 700054 · 09451 · 9451 · 3335 · 128439 · 124012 · 6465
This part cross-references / interchanges with the following part numbers:
RC-FDZ070, 97042, CH8439, 175-6223, 700054, 09451, 9451, 35-4021, 671-4061, 3335, 52028, 128439, 35-PF87595, 124012, 6465
