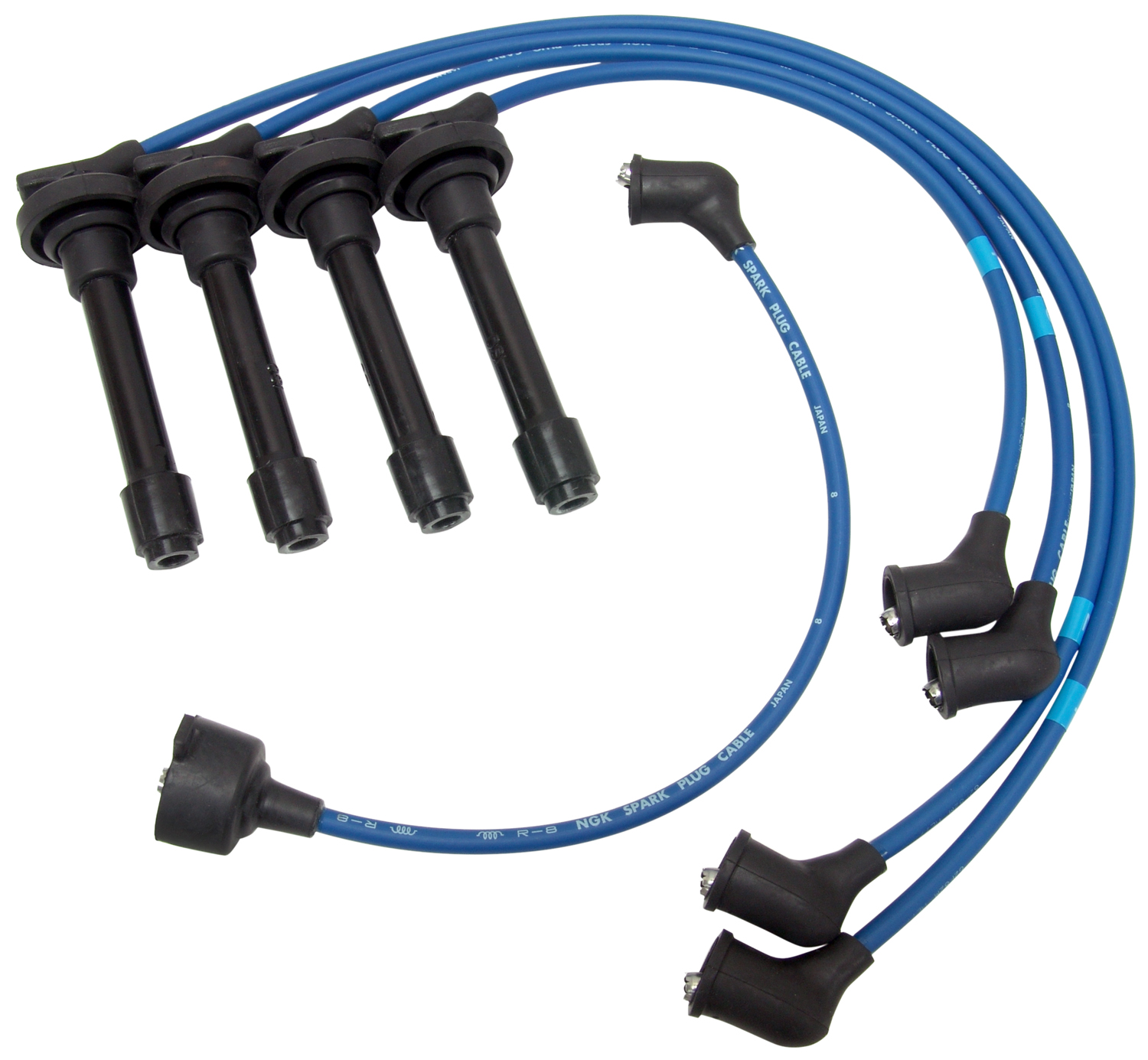

NGK 8039 spark plug wire set for the 1992-1996 Honda Prelude 4-cylinder 2.3L carries high-voltage current from the ignition coil to the spark plugs. This NGK wire set is built to OEM tolerances with OE quality or better materials.
- Variable pitch winding over a ferrite magnetic alloy coating for low resistance and EMI/RFI noise suppression
- Outer EPDM/silicone jacket built to withstand temperatures greater than 250 degrees C
- Spark plug boots glued to the cable with a silicone sealer for a watertight seal
- Stainless steel terminals with up to 3 serrated crimps that bite into the cable jacket and inner insulation
- Locking C-shaped spring clip with corrosion-resistant plating at the spark plug terminal
Quick facts
- Part: NGK 8039 spark plug wire set
- Fits: 1992-1996 Honda Prelude 4-cylinder 2.3L
A misfire, rough idle or hard starting can mean the spark plug wire set is worn, though the spark plugs or the ignition coil can be behind those signs too.
Fits
It is a direct-fit replacement for the 1992-1996 Honda Prelude 4-cylinder 2.3L.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires in set: 4, including the coil lead
Build and materials
- Cable: variable pitch magnetic core
- Outer jacket: EPDM/silicone
- Terminals: stainless steel
- NGK part number: RC-HE77
- Warranty: NGK limited lifetime warranty, see package for details
In the box
One spark plug wire set with four wires, including the coil lead. This listing is one set, and the 1992-1996 Honda Prelude 4-cylinder 2.3L takes one set.
Installation notes
- Cylinder lead identification tags, where possible, make installation easier.
Interchange: 175-6067 · 35-4218 · 671-4187 · 35-PF77568 · RC-HE77
86553 · 96553 · CH74150 · CH74150U · 700795 · 09811 · 09830 · 9811 · 9830 · 1274150 · 1274150U · 164015 · 55003 · 7517
This part cross-references / interchanges with the following part numbers:
RC-HE77, 86553, 96553, CH74150, CH74150U, 175-6067, 700795, 09811, 09830, 9811, 9830, 35-4218, 671-4187, 8039, 1274150, 1274150U, 35-PF77568, 164015, 55003, 7517
Frequently Asked Questions
Is NGK 8039 one of the NGK spark plug wire sets for the 1992-1996 Honda Prelude 4-cylinder 2.3L?
Yes. NGK 8039 is listed for the 1992-1996 Honda Prelude 4-cylinder 2.3L, and this listing is one set of four wires with a coil lead.
How many NGK plug wires come in set 8039?
Set 8039 has four wires, including the coil lead, in one listing. The fitment calls for one set.
Are the terminals on NGK 8039 stainless steel?
Yes. NGK 8039 has stainless steel terminals with up to 3 serrated crimps that grip the cable jacket and inner insulation, plus a locking C-shaped spring clip with corrosion-resistant plating at the plug end.
How can I tell if my spark plug wires are worn?
With the engine off and cool, look for cracks, burn marks or damaged boots, and notice any misfire or rough running while driving. A shop can test the wires if the look is not clear.
What temperature can the jacket on these NGK blue spark plug wires handle?
The outer EPDM/silicone jacket handles temperatures above 250 degrees C. The inner insulation is EPDM or silicone for dielectric strength.
