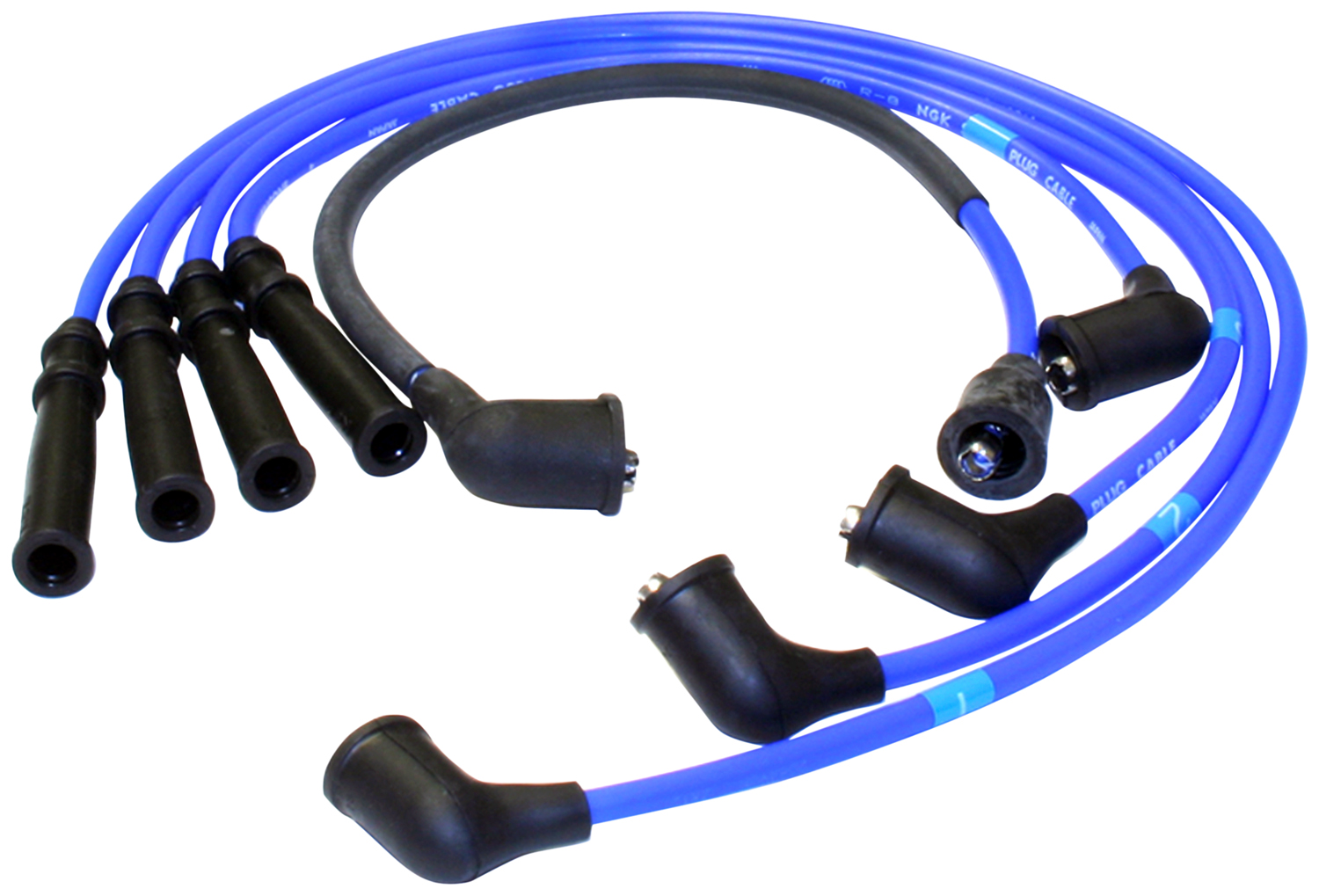

NGK 9134 spark plug wire set for the 1987-1993 Mazda B2200 4-cylinder 2.2L and other vehicles carries high-voltage current from the ignition to the spark plugs. NGK spark plug wire sets like this one use variable pitch resistor cable with a magnetic core to suppress EMI/RFI noise.
- Outer jacket withstands temperatures above 250 degrees C, with EPDM or silicone inner insulation for dielectric strength
- Stainless steel terminals with up to 3 serrated crimps that bite into the cable jacket and inner insulation
- Variable pitch winding over a ferrite magnetic alloy coating for low resistance and interference protection
- Spark plug boots glued to the cable with a silicone sealer for a watertight seal
- Locking C-shaped spring clip with corrosion-resistant plating at the spark plug terminal
Quick facts
- Part: NGK 9134 spark plug wire set
- Fits: 1987-1993 Mazda B2200 4-cylinder 2.2L and other vehicles
- Condition: New
A misfire, hard starting or cracked and burnt boots can mean the wires are worn. Before you replace the set, rule out worn spark plugs and the ignition coil, because a misfire can start there too.
Fits
This direct-fit set is listed for a wide range of Mazda and Ford models, including the 1989-1992 Ford Probe 4-cylinder 2.2L and the 1988-1992 Mazda MX-6 4-cylinder 2.2L; either one needs a single set. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires: 4, with coil lead
- NGK part number: RC-ZX12
Build and materials
- Construction: variable pitch magnetic core cable
- Terminals: stainless steel
- Spark plug terminal clip: locking C-shaped spring clip, corrosion-resistant plating
- Condition: New
- Warranty: NGK limited lifetime warranty, see package for details
In the box
One spark plug wire set: four wires, with coil lead.
Installation notes
- Cylinder lead identification tags, where possible, make installation easier.
Interchange: 175-5886 · 35-4008 · 35-4241 · 671-4008 · 35-PF77336 · RC-ZX12
86428 · 86455 · 96428 · 96455 · CH449 · CH7468 · 700351 · 09185 · 9185 · 127429 · 127468 · 104008 · 184001 · 55107 · 7444 · 7451
This part cross-references / interchanges with the following part numbers:
RC-ZX12, 86428, 86455, 96428, 96455, CH449, CH7468, 175-5886, 700351, 09185, 9185, 35-4008, 35-4241, 671-4008, 9134, 127429, 127468, 35-PF77336, 104008, 184001, 55107, 7444, 7451
Frequently Asked Questions
Does the NGK 9134 fit the 1989-1992 Ford Probe 4-cylinder 2.2L?
Yes. NGK 9134 is listed for the 1989-1992 Ford Probe 4-cylinder 2.2L and the 1988-1992 Mazda MX-6 4-cylinder 2.2L, and each takes one set.
What comes with this NGK wire set?
The listing is one spark plug wire set of four wires, with coil lead.
What is the jacket on this NGK wire made of?
The outer jacket is EPDM/silicone and is built to withstand temperatures above 250 degrees C. The inner insulation is EPDM or silicone.
How do these NGK plug wires hold their terminal connections?
The stainless steel terminals use up to 3 serrated crimps that bite into the cable jacket and inner insulation. A locking C-shaped spring clip with corrosion-resistant plating grips the spark plug terminal.
Does a warranty cover these NGK blue spark plug wires?
Yes. NGK 9134 comes with an NGK limited lifetime warranty; see the package for details.
