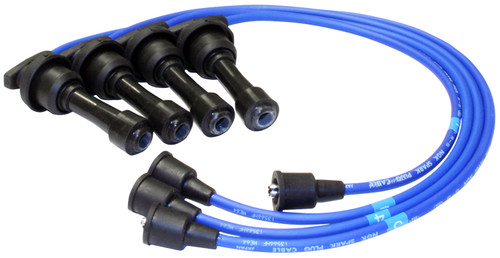

NGK 9634 spark plug wire set for the 1992-1998 Hyundai Sonata 4-cylinder 2.0L and other vehicles carries high-voltage current from the ignition coil to the spark plugs. It is one of the NGK spark plug wire sets with a variable pitch magnetic core that suppresses EMI/RFI noise.
- Outer jacket withstands temperatures greater than 250 degrees C; inner insulation is EPDM or silicone for dielectric strength
- Stainless steel terminals with up to 3 serrated crimps that bite into the jacket and inner insulation to hold the terminal
- Variable pitch winding over a Ferrite magnetic alloy coating for ultra low resistance and interference protection
- Spark plug boots glued to the cable with a silicone sealer for a watertight seal
- Locking C-shaped spring clip with corrosion-resistant plating at the spark plug terminal
- Cylinder lead identification tags where possible
Quick facts
- Part: NGK 9634 spark plug wire set
- Fits: 1992-1998 Hyundai Sonata 4-cylinder 2.0L and other vehicles
- Condition: New
A misfire, a rough idle or a cracked or burned jacket can mean worn wires, though a fouled spark plug or a weak ignition coil may be behind the first two.
Fits
This set is listed for a wide range of Hyundai, Mitsubishi, Dodge, Eagle and Plymouth models, including the 1992-1995 Hyundai Elantra 4-cylinder 1.6L and the 1993-1995 Elantra 4-cylinder 1.8L, and the 1990-1994 Plymouth Laser 4-cylinder 2.0L. A single set serves each of them. Open the "Vehicles it fits" section to check your exact model and engine. The wires are built to OEM tolerances with OE quality or better materials.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires in the set: 4
Build and materials
- Type: variable pitch magnetic core
- Terminals: stainless steel
- Condition: New
- NGK part number: RC-ME64
- Warranty: NGK limited lifetime warranty (see package for details)
In the box
One set of four spark plug wires.
Interchange: 35-4022 · 671-4074 · 35-PF77426 · 35-PF77510 · RC-ME64
86522 · 96522 · CH7481 · 700441 · 09246 · 9246 · 127481 · 134008 · 55221 · 7479
This part cross-references / interchanges with the following part numbers:
RC-ME64, 86522, 96522, CH7481, 700441, 09246, 9246, 35-4022, 671-4074, 9634, 127481, 35-PF77426, 35-PF77510, 134008, 55221, 7479
Frequently Asked Questions
Is the NGK 9634 set right for the 1992-1998 Hyundai Sonata 4-cylinder 2.0L?
Yes. NGK 9634 is listed for the 1992-1998 Hyundai Sonata 4-cylinder 2.0L, and that engine takes one set.
How many wires come in this NGK wire set?
The NGK 9634 set has four spark plug wires, one for each cylinder of the 4-cylinder engines it is listed for.
What are the terminals on these NGK blue spark plug wires made of?
The terminals are stainless steel with up to 3 serrated crimps. A locking C-shaped spring clip with corrosion-resistant plating holds the spark plug connection.
How can I tell when NGK plug wires are worn?
With the engine off and cool, look for cracked or burned jackets and damaged boots. A misfire or rough idle while driving is another sign.
Does the NGK wire in this set suppress radio interference?
Yes. The variable pitch magnetic core winding is made to suppress EMI/RFI noise across the frequency spectrum.
