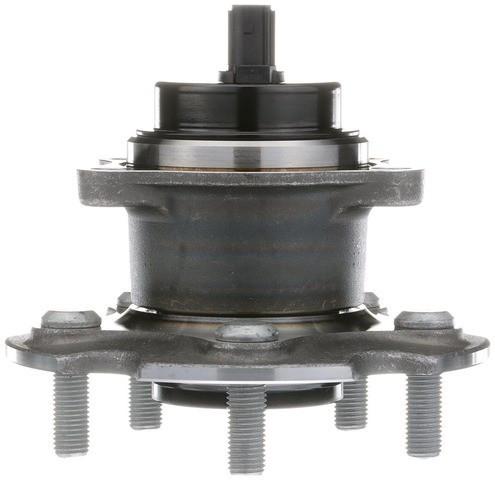

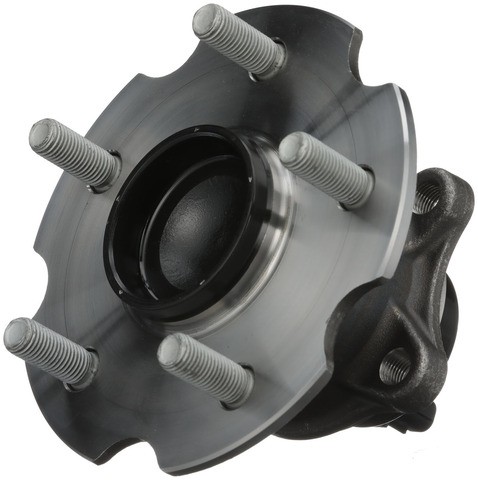

NSK 49BWKHS62 rear wheel bearing and hub assembly for the 2006-2018 Toyota RAV4 and other vehicles holds the wheel and lets it turn freely on the axle. This NSK wheel bearing is a non-driven, generation 3 unit built for ABS-equipped vehicles.
- Vehicle-specific form and performance
- Superfinished, precision-matched bearing raceway for a long-life, low-friction bearing
- Multi-lip seal that resists water and contamination
- Sealed-for-life design with all-weather grease, so it needs no maintenance
Quick facts
- Part: NSK 49BWKHS62 wheel bearing and hub assembly
- Fits: 2006-2018 Toyota RAV4 and other vehicles
- Position: Rear
- Condition: New
A worn bearing can show up as a humming or growling noise that rises with speed, looseness at the wheel or an ABS warning light, though other parts can produce similar symptoms. Find the cause first: during a brake or tire service, when the wheel is already off, look at the hub area for grease leaking past the seal, and leave play and ABS tests to a shop.
Fits
The 2006-2018 Toyota RAV4, the 2018-2021 Lexus NX300 and the 2017-2018 Toyota Corolla iM all take it, along with more Toyota, Lexus and Scion models. Each takes two, one for each rear wheel. This listing is one assembly, and the other rear wheel on that axle is normally done at the same time. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Flange diameter: 152 mm
- Flange offset: 60 mm
- Wheel flange bolt circle: 114.3 mm, 5 wheel studs (M12X1.5)
- Mounting flange bolt circle: 97 mm, 4 bolt holes (M12X1.25)
- Wheel pilot diameter: 60 mm
- Brake pilot diameter: 62 mm
- Hub pilot diameter: 76 mm
Build and materials
- Type: generation 3, non-driven
- ABS: equipped, sensor type
- Condition: new
- Country of origin: United States
Interchange: 424500R010 · 4245042040
Frequently Asked Questions
Is this the right part for 2006-2018 Toyota RAV4 wheel bearing replacement?
Yes. NSK 49BWKHS62 is a rear wheel bearing and hub assembly for the 2006-2018 Toyota RAV4, which takes two. For other cars, use the "Vehicles it fits" section.
Does the 2006-2018 Toyota RAV4 wheel bearing from NSK include the hub?
Yes. NSK 49BWKHS62 is a wheel bearing and hub assembly, a generation 3 unit with five wheel studs, built for ABS-equipped cars with a sensor-type ABS.
What are the bolt circle and pilot sizes of this NSK wheel hub assembly?
The wheel flange bolt circle is 114.3 mm with five M12X1.5 studs. The pilot diameters are 60 mm for the wheel, 62 mm for the brake and 76 mm for the hub.
What noises can a worn rear wheel bearing make?
A worn bearing can cause a humming or growling noise that changes with speed, vibration or looseness at the wheel. A shop can test wheel play and the ABS function.
Does this sealed hub assembly need regreasing?
No. It has a sealed-for-life design with all-weather grease and a multi-lip seal against water and contamination, so it needs no maintenance.
