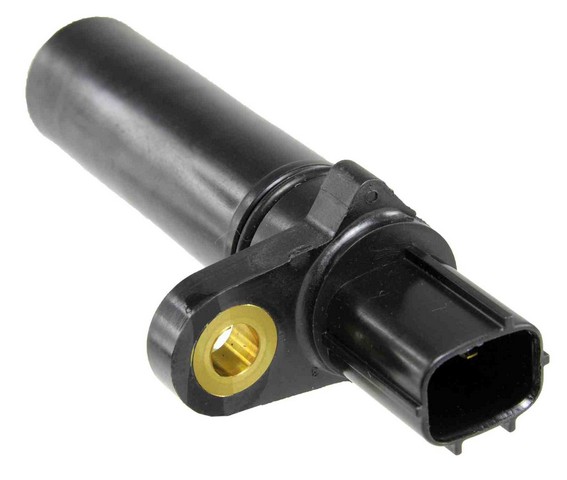

NGK O2 SENSORS AU0151 transmission speed sensor for the 1996-2000 Honda Civic and other vehicles measures how fast the transmission output shaft turns. It relays that speed to the engine or transmission control module as an analog or digital signal.
- High strength thermoplastic resists temperature, moisture and chemicals
- O-ring pre-installed for sealing and easier installation
- Output speed feeds shift points, speedometer operation and transmission diagnostics
Quick facts
- Part: NGK O2 SENSORS AU0151 transmission speed sensor
- Also called: automatic transmission speed sensor
- Fits: 1996-2000 Honda Civic and other vehicles
- Position: Output
- Material: High strength thermoplastic
- Condition: New
A failing automatic transmission speed sensor can show up as a check engine light, poor or erratic shifting, or a speedometer that reads erratically or not at all. Other faults can produce those symptoms too, so with the engine off and cool, look over the sensor body and connector for cracks, fluid residue or damage before replacing it.
Fits
Honda and Acura models make up the listing, led by the 1996-2000 Honda Civic, the 1997-2001 Honda CR-V and the 1997-2005 Acura EL. It is a direct-fit replacement for these vehicles, and its output signal matches OE specifications. If your car is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Output
- Quantity per vehicle: 1
Build and materials
- Material: High strength thermoplastic
- Condition: New
- Warranty: 3 year/36,000 mile warranty from NTK
In the box
One transmission speed sensor. The fitment calls for one per vehicle.
Interchange: 090-5067 · 28810-P4R-003
SN7173 · VSS773 · SC240
This part cross-references / interchanges with the following part numbers:
SN7173, 090-5067, VSS773, 28810-P4R-003, SC240
Frequently Asked Questions
Will this Honda Civic transmission sensor fit a 1996-2000 Honda Civic?
Yes. NGK O2 SENSORS AU0151 is listed for the 1996-2000 Honda Civic whatever the engine, and it is the output position sensor.
What is the AU0151 sensor housing made of?
The body is high strength thermoplastic, which stands up to temperature, moisture and chemicals.
Does the AU0151 speed sensor come with an o-ring?
Yes, the o-ring is already installed on the sensor. This listing is one sensor, and the fitment calls for one per vehicle.
What signs can point to a worn output speed sensor?
A check engine light, poor or erratic shifting, and a speedometer that is erratic or not working can all be linked to this sensor.
Does the AU0151 replace 28810-P4R-003?
Yes. 28810-P4R-003 is among the numbers NGK O2 SENSORS AU0151 replaces, and the Interchange line lists the rest.
