NTK Engine Coolant Temperature Sensor P/N:EF0155
NTK EF0053 coolant temperature sensor for the 2005 Subaru Outback H6 3.0L, the 2005-2017 Outback H4 2.5L, the 2015 Outback H6 3.6L and other vehicles measures engine coolant temperature and sends an analog signal to the ECM. The engine coolant temperature sensor signal helps the ECM keep the air/fuel ratio right and run the cooling fan(s) and temperature gauge.
A check engine light, a temperature gauge that reads erratically or not at all, or a cooling fan that runs erratically or not at all can mean this sensor is worn, though a faulty fan or a thermostat problem can sit behind those signs too, so find the cause first.
It fits the 2005 Subaru Outback H6 3.0L, the 2005-2017 Outback H4 2.5L and the 2015 Outback H6 3.6L, and it is also a coolant temperature sensor for the 2005-2016 Subaru Legacy H4 2.5L and the 2015 Legacy H6 3.6L. Wires and probe length match OE. This listing is one sensor, and every one of these engines takes one.
One coolant temperature sensor. Mounting clip(s) are included where applicable.
Interchange: 22630 AA17A · WT5171 · TS5770 · 2CTS0067 · TX158
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the NTK EF0053 right for the 2005-2017 Subaru Outback H4 2.5L?
Yes. NTK EF0053 fits the 2005-2017 Subaru Outback H4 2.5L, and that engine takes one sensor.
Will an NTK EF0053 work on the 2005-2016 Subaru Legacy H4 2.5L?
Yes. NTK EF0053 fits the 2005-2016 Subaru Legacy H4 2.5L and the 2015 Legacy H6 3.6L, with one sensor per engine.
Does the NTK EF0053 come with mounting clips?
Mounting clip(s) are included where applicable, along with the one coolant temperature sensor. Thread sealant or an o-ring is installed on the sensor where applicable.
What is the housing of this NTK coolant temperature sensor made of?

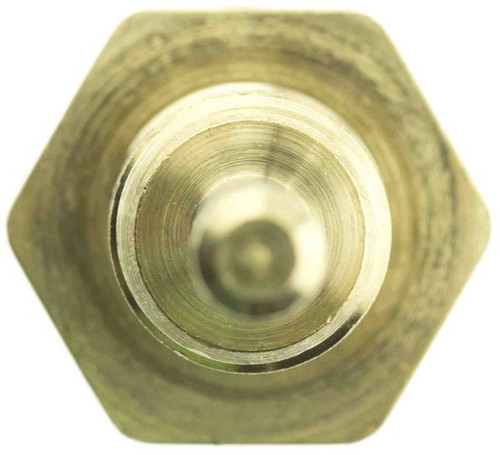

The housing is brass. Thermal conductive grease inside it speeds up how fast the sensor responds to coolant temperature.
Does NTK EF0053 replace part number WT5171?
Yes. WT5171 is one of the interchange numbers listed for NTK EF0053; the others are on the Interchange line.
