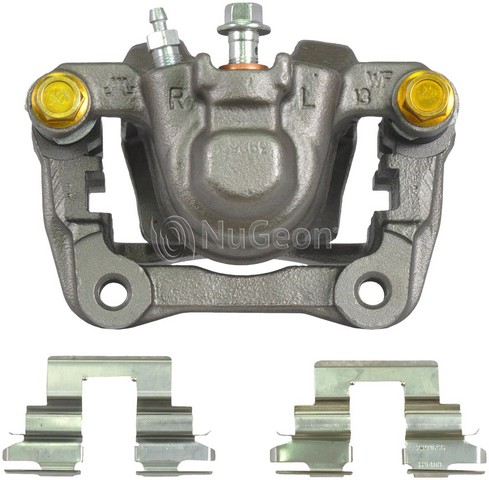

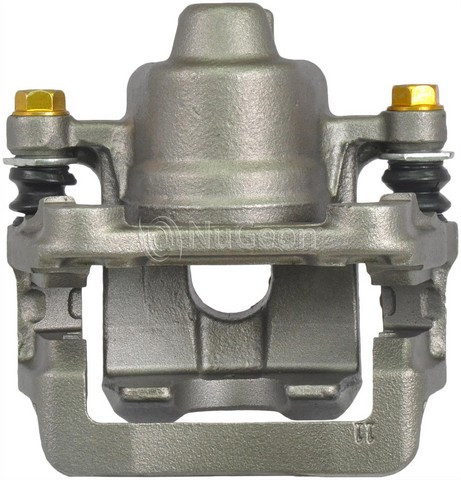

Nugeon 99-00952A rear right brake caliper for the 2002-2004 Honda Odyssey presses the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces a worn or sticking caliper at that wheel.
- Floating caliper with a single steel piston
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting for the brake line connection
Quick facts
- Part: Nugeon 99-00952A brake caliper
- Also called: disc brake caliper
- Fits: 2002-2004 Honda Odyssey
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A worn disc brake caliper can show up as a pull to one side when braking, a wheel that runs hot, uneven pad wear or fluid around the caliper. None of these alone proves the caliper is at fault, since a collapsed brake hose is another common source of a dragging brake.
Fits
It is a direct-fit caliper for the 2002-2004 Honda Odyssey. Each side of the rear axle takes one caliper; this listing is the right one, the left is ordered separately, and the two are normally done at the same time.
Specifications
Fit and size
- Position: rear right
- Quantity per application: 1
- Piston diameter: 38 mm (1.496 in)
- Piston quantity: 1
- Inlet port thread: M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0
- Housing cast numbers: 3826, WF
- Bracket cast number: 3826
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Housing material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One remanufactured caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, the bleeder screw cap, wear sensors, caliper and pad hardware and the bracket mounting bolts are not included; plan on new mounting bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is the Nugeon 99-00952A caliper the rear right one for a 2002-2004 Honda Odyssey?
Yes, Nugeon 99-00952A is the rear right caliper for the 2002-2004 Honda Odyssey; the rear left takes its own separate caliper.
Does the Nugeon caliper come with the bracket and slides?
Yes, Nugeon 99-00952A includes the bracket, caliper slides, dust boots, bleeder screw and crush washers; brake pads, shims and the bracket mounting bolts are not included.
What size is the piston on this rear right caliper?
The single steel piston is 38 mm (1.496 in) across. The caliper is a floating type with an M10-1.0 bleeder screw thread.
Can a rear caliper that drags make the car pull to one side?
Yes, it can. A dragging caliper can leave one wheel hot, wear the pads unevenly or pull the car to one side, so have a shop look at it promptly rather than driving on it.
Is the housing on this caliper cast iron?
Yes. The housing is cast iron with a rust preventative finish, and the piston is steel.
