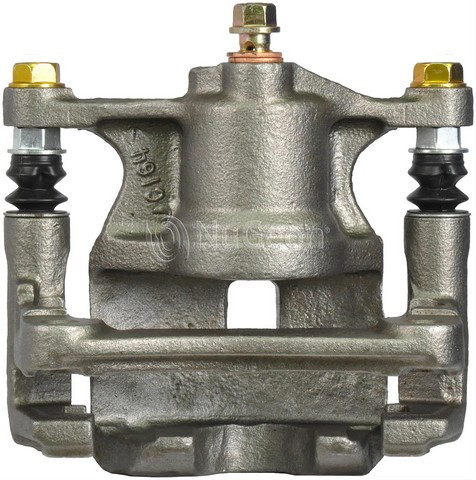

Nugeon 99-01585B rear left brake caliper for the 1995-1996 Toyota Avalon squeezes the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper replaces the unit on the rear left wheel.
- Floating caliper with a single steel piston, 35 mm in diameter
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with an M10-1.0 x 27.32 port thread
- Bleeder screw with an M7-1.0 thread
Quick facts
- Part: Nugeon 99-01585B brake caliper
- Also called: disc brake caliper
- Fits: 1995-1996 Toyota Avalon
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A failing caliper can show up as the car pulling to one side under braking, a pad that wears faster than the others, or brake fluid around the caliper or its dust boot. Before you replace the caliper, rule out worn pads, a damaged brake hose and a rotor problem, since these can produce similar signs.
Fits
This Nugeon brake caliper is a direct-fit replacement for the 1995-1996 Toyota Avalon, on the rear left side.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 for this side
- Piston diameter: 35 mm (1.378 in), 1 piston
- Inlet fitting: banjo bolt, port thread M10-1.0 x 27.32
- Bleeder screw thread: M7-1.0
- Housing cast numbers: 3501, PE35R, L
Build and materials
- Condition: Remanufactured
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One remanufactured caliper with its mounting bracket, mounting hardware, caliper slides, dust boots, bleeder screw and crush washer. Brake pads, anti-squeal shims, caliper and pad hardware, bracket mounting bolts, the bleeder screw cap and wear sensors are not included, so plan on new bracket bolts because the old ones may not be reusable. This listing holds one caliper and the rear left takes one; the rear right is ordered separately, and the two are normally replaced together.
Frequently Asked Questions
Which side does this brake caliper for the 1995-1996 Toyota Avalon go on?
Nugeon 99-01585B is the rear left caliper for the 1995-1996 Toyota Avalon. The rear right side is a separate part.
Does this Nugeon caliper come with the bracket and slides?
Yes. The listing includes the mounting bracket, caliper slides, dust boots, bleeder screw and crush washer. Brake pads and bracket mounting bolts are not included.
What size is the piston in the Nugeon 99-01585B caliper?
Nugeon 99-01585B has one steel piston, 35 mm (1.378 in) in diameter, in a floating caliper.
How can I tell if a rear left brake caliper is going bad?
Signs can include the car pulling to one side under braking or brake fluid around the caliper. Uneven pad wear found during a brake service is another sign, and a shop can confirm whether the caliper is the cause.
What are the inlet and bleeder thread sizes on this rear left caliper?
The inlet port uses a banjo bolt fitting with an M10-1.0 x 27.32 thread. The bleeder screw thread is M7-1.0.
