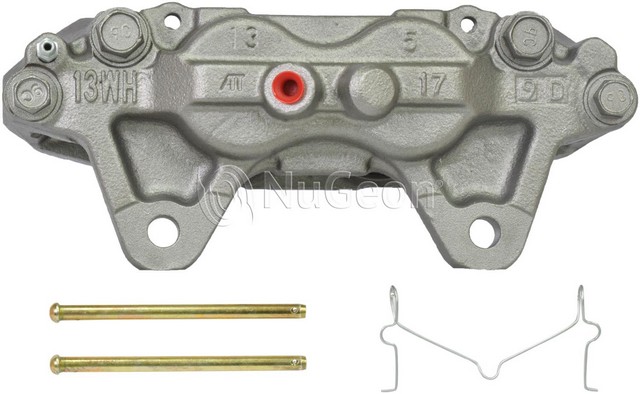

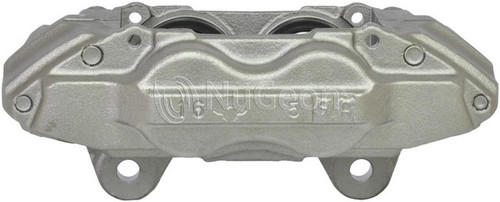

Nugeon 97-01652A front right brake caliper for the 2003-2009 Toyota 4Runner and other vehicles squeezes the pads against the rotor to slow the wheel. Hydraulic pressure moves the pistons of this remanufactured disc brake caliper.
- Fixed caliper design with four steel pistons
- Cast iron casting with a rust preventative finish
- Tube seat inlet fitting for the brake line
Quick facts
- Part: Nugeon 97-01652A brake caliper
- Also called: disc brake caliper
- Fits: 2003-2009 Toyota 4Runner and other vehicles
- Position: Front right
- Material: Cast iron casting, steel pistons
- Condition: Remanufactured
A pull to one side, a dragging brake or fluid at the wheel can mean a caliper has seized or is leaking. Before you replace it, rule out worn pads, a damaged brake hose or a warped rotor, since those can also bring on a pull or drag. This listing is one caliper for the front right; the front left is a separate part, and both sides are normally replaced together.
Fits
This caliper fits the front right of the 2003-2009 Toyota 4Runner and the 2003-2009 Lexus GX470, one caliper for that corner.
Specifications
Fit and size
- Position: Front right
- Quantity for this side: 1
- Piston outside diameter: 45.31 mm (1.78 in)
- Inlet port thread: M10-1.0
- Bleeder screw thread: M7-1.0
Build and materials
- Type: Fixed caliper, 4 pistons
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: 13WH
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured front right brake caliper with its bleeder screw, slides, dust boots, caliper and pad hardware, mounting hardware and crush washers. The bracket, bracket bolts, mounting bolt, pads, anti-squeal shims, wear sensors and bleeder screw cap are not included. Plan on new bracket and mounting bolts, as the old ones may not be reusable.
Frequently Asked Questions
Is this a 2003-2009 Toyota 4Runner caliper for the front right wheel?
Yes. Nugeon 97-01652A is the front right caliper for the 2003-2009 Toyota 4Runner, and that position takes one.
Is this a 2003-2009 Lexus GX470 brake caliper for the front right side?
Yes. Nugeon 97-01652A is a front right caliper that fits the 2003-2009 Lexus GX470, one for that side.
Which hardware is included with this Nugeon caliper?
This caliper includes the bleeder screw, slides, dust boots, caliper and pad hardware, mounting hardware and crush washers. Pads, bracket, bracket bolts, mounting bolt, shims, wear sensors and bleeder screw cap are not included.
Is this Nugeon brake caliper a fixed or floating design?
This is a fixed caliper with four steel pistons, and piston 1 measures 45.31 mm (1.78 in) across.
Can I keep driving with a front right caliper that drags or leaks?
No. A drag, a pull to one side or a fluid leak at the wheel needs prompt attention, so have the brakes inspected or the caliper replaced rather than driving on it.
