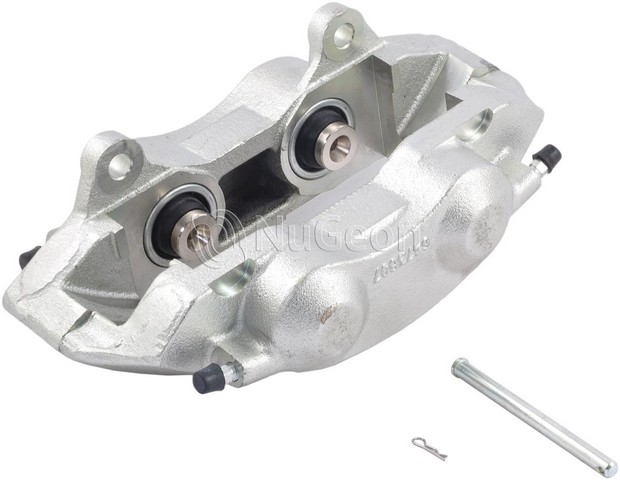

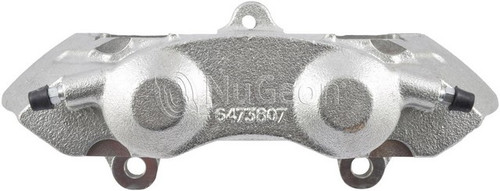

Nugeon 97-17214A rear right brake caliper for the 1965-1982 Chevrolet Corvette clamps the pads against the rotor to slow the wheel. Sold as a remanufactured unit, this Nugeon brake caliper is also called a disc brake caliper.
Brake fluid around the caliper, uneven pad wear or a wheel that stays hot after a drive can mean a rear caliper is failing. Before you replace the caliper, rule out worn pads, a damaged brake hose or a sticking slide first, since any of those can also make a wheel drag or the car pull.
This caliper is a direct-fit replacement for the 1965-1982 Chevrolet Corvette. This listing is one caliper for the rear right; the rear left is a separate part, and the left side of that axle is normally done at the same time.
Fit and size
Build and materials
One caliper with its bleeder screw, caliper and pad hardware, mounting hardware and crush washers. The pads, anti-squeal shims, wear sensors, bleeder screw cap, mounting bracket and mounting bolts are not included, so plan on new bolts rather than reusing the old ones. This listing holds one caliper, and the rear right takes one.
Interchange / FMSI:
FMSI: D8
Does this Corvette brake caliper fit the rear right of the 1965-1982 Chevrolet Corvette?
Yes. Nugeon 97-17214A is the rear right caliper for the 1965-1982 Chevrolet Corvette. The rear left side is a separate part.
Are pads included with the Nugeon caliper?
No. The Nugeon 97-17214A caliper does not include pads, anti-squeal shims, wear sensors, the bracket or mounting bolts. The bleeder screw, crush washers and mounting hardware are included.
What are the piston size and inlet thread on this rear right brake caliper?
This caliper has four aluminum pistons, each 34.75 mm (1.37 in) in outside diameter. The inlet port is 3/8-24 thread with a tube seat fitting.
What are the signs a rear right brake caliper is leaking or sticking?
Brake fluid around the caliper, uneven pad wear or a wheel that stays hot after driving can point to a failing caliper. A shop can test it, and a braking problem should be checked promptly.
Is the Nugeon 97-17214A a fixed or floating caliper?
The Nugeon 97-17214A is a fixed caliper with four pistons. It has a cast iron housing and a rust-preventative finish.
