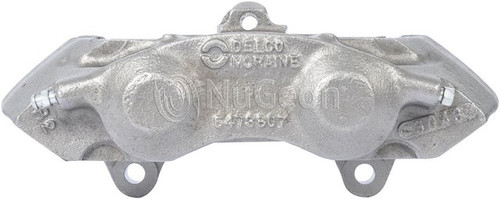

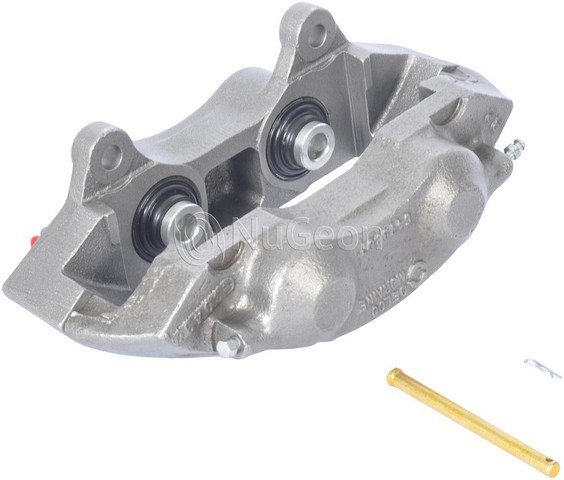

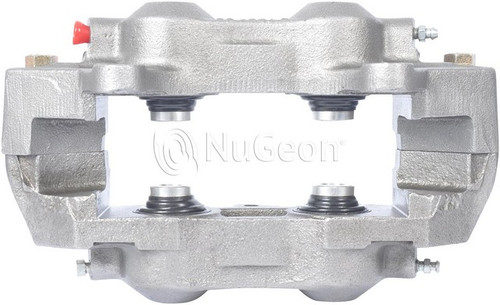

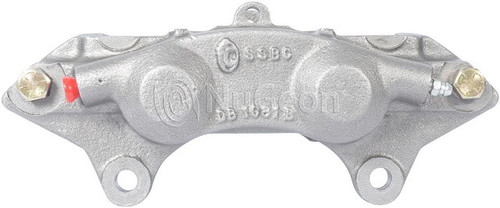

Nugeon 97-17214B rear left brake caliper for the 1965-1982 Chevrolet Corvette clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, turns hydraulic pressure from the brake line into that clamping force.
- Fixed caliper design with four pistons
- Cast iron housing with aluminum pistons
- Rust preventative finish
- Tube seat inlet fitting with 3/8-24 thread
Quick facts
- Part: Nugeon 97-17214B brake caliper
- Also called: disc brake caliper
- Fits: 1965-1982 Chevrolet Corvette
- Position: Rear left
- Material: Cast iron casting, aluminum pistons
- Condition: Remanufactured
A car that pulls to one side, wears pads unevenly or drags at the rear wheel can have a sticking caliper. These signs alone do not prove the caliper is at fault, since a damaged brake hose is another common cause. Replace the rear calipers as a pair; this listing is one caliper for the rear left, the right side is ordered separately, and each side of the axle takes one.
Fits
It is a direct-fit replacement for the 1965-1982 Chevrolet Corvette.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston quantity: 4
- Piston diameter: 35 mm (1.378 in); piston 1 outside diameter: 34.75 mm (1.37 in)
- Bleeder screw: 5/16-24 x 1.01
- Housing cast number: 5452201
Build and materials
- Caliper type: Fixed
- Casting material: Cast iron
- Piston material: Aluminum
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper with its bleeder screw, caliper and pad hardware, caliper slides, dust boots, mounting hardware and crush washer. Pads, bracket, bracket mounting bolts, mounting bolts, anti-squeal shims, wear sensors and the bleeder screw cap are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D8
Frequently Asked Questions
Is this the 1965-1982 Chevrolet Corvette brake caliper for the rear left wheel?
Yes. Nugeon 97-17214B is the rear left caliper for the 1965-1982 Chevrolet Corvette; the right side takes its own caliper.
Does this Nugeon caliper come with brake pads?
No. The Nugeon 97-17214B leaves out pads, bracket, mounting bolts, anti-squeal shims and the bleeder screw cap. It does include the bleeder screw, slides, dust boots, hardware and crush washer.
What size is the bleeder screw on this rear left caliper?
The bleeder screw is 5/16-24 x 1.01 and is included with the caliper. The bleeder screw cap is not included.
How can I tell if this rear caliper's piston or dust boots are damaged?
During a brake service with the wheel off, torn dust boots, fluid seepage around a piston or a seized slide can show the caliper needs work. A shop can confirm it.
How many pistons does this caliper have, and how big are they?
The Nugeon 97-17214B is a fixed caliper with four aluminum pistons, each 35 mm (1.378 in) in diameter.
