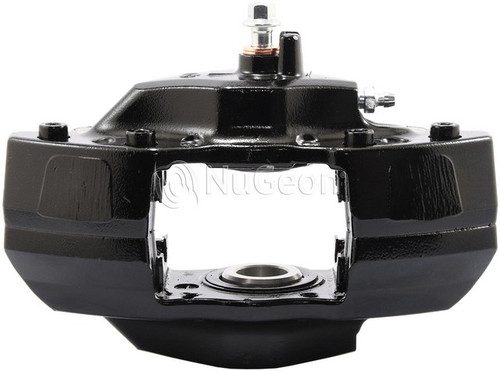

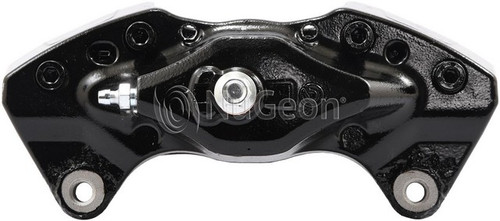

Rear Right Brake Caliper for 2008-2014 Subaru Impreza & More - Nugeon 97B01339A
Nugeon 97B01339A rear right brake caliper for the 2008-2014 Subaru Impreza and other vehicles slows the wheel by squeezing the pads against the rotor. This remanufactured disc brake caliper goes on the rear right wheel only.
- Fixed caliper with two aluminum pistons, each 40 mm (1.575 in) in diameter
- Aluminum caliper casting with a black powder-coated finish
- Banjo-bolt inlet with an M10-1.0 x 23.4 mm port thread
- Bleeder screw, dust boots and crush washers included
Quick facts
- Part: Nugeon 97B01339A brake caliper
- Also called: disc brake caliper
- Fits: 2008-2014 Subaru Impreza and other vehicles
- Position: Rear right
- Material: Aluminum
- Condition: Remanufactured
A brake that pulls to one side, drags, or leaves fluid around the dust boot can mean a caliper piston is sticking or leaking. Before replacing it, look over the dust boot, bleeder screw and banjo fitting with the engine off; a pull or drag can also come from a hose or worn pads, so a shop can test those.
Fits
It fits the 2008-2014 Subaru Impreza and the 2013-2017 Subaru WRX STI. This listing is one caliper for the rear right; the rear left is ordered separately, and the two are normally replaced together. There is one caliper at each rear wheel.
Specifications
Fit and size
- Position: Rear right
- Number of pistons: 2
- Piston diameter: 40 mm (1.575 in)
- Inlet fitting: Banjo bolt
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw: M10-1.0 x 28.8 mm
Build and materials
- Caliper type: Fixed
- Casting material: Aluminum
- Piston material: Aluminum
- Finish: Black, powder coated
- Housing cast number: 20.9820.01
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear right brake caliper with a bleeder screw, dust boots, crush washers and mounting hardware. Brake pads, bracket, bracket mounting bolts, mounting bolts, slides, anti-squeal shims, wear sensors, bleeder screw cap and caliper and pad hardware are not included; plan on new bolts rather than reusing the old ones.
Frequently Asked Questions
How many pistons does this Nugeon brake caliper have?
It has two aluminum pistons, each 40 mm (1.575 in) in diameter. The caliper is a fixed type with an aluminum casting.
Does the Nugeon caliper come with brake pads or a bracket?
No. Nugeon 97B01339A does not include pads, a bracket, slides or mounting bolts. It does include a bleeder screw, dust boots, crush washers and mounting hardware.
Does this WRX STI brake caliper fit the 2013-2017 Subaru WRX STI?
Yes. Nugeon 97B01339A is the rear right caliper for the 2013-2017 Subaru WRX STI. It is not a front or rear left piece.
Are these Impreza calipers right for the rear right of a 2008-2014 Subaru Impreza?
Yes. This caliper is for the rear right of the 2008-2014 Subaru Impreza. The rear left caliper is a separate part.
What thread does the inlet on this brake caliper use?
The inlet is a banjo-bolt fitting with an M10-1.0 x 23.4 mm port thread. The bleeder screw is M10-1.0 x 28.8 mm.
