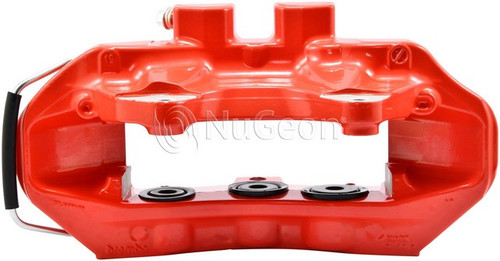

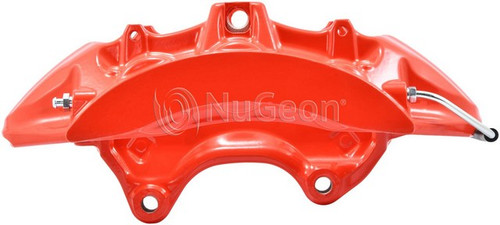

Nugeon 97R17400B front left brake caliper for the 2009-2016 Cadillac CTS is a remanufactured unit that squeezes the pads against the rotor. The Nugeon brake caliper turns brake fluid pressure into the clamping force that slows the wheel.
- Fixed caliper with six pistons
- Aluminum pistons with outside diameters of 30 mm, 34 mm and 38 mm
- Aluminum caliper casting with a red powder-coated finish
- Banjo bolt inlet fitting with an M10-1.0 x 27.32 mm port thread
Quick facts
- Part: Nugeon 97R17400B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2016 Cadillac CTS
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
Signs of a failing caliper can include a leak around the dust boots, a pull to one side under braking or a dragging wheel. A collapsed brake hose, worn pads or a damaged rotor can also be behind a pull or a drag, so find out which part is at fault before you buy. This listing is one caliper; both front calipers are normally replaced together.
Fits
This front left brake caliper is a direct-fit replacement for the 2009-2016 Cadillac CTS.
Specifications
Fit and size
- Position: front left
- Quantity for this side: 1
- Caliper type: fixed, 6 pistons
- Piston outside diameters: 30 mm (1.181 in), 34 mm (1.339 in), 38 mm (1.496 in)
- Inlet: banjo bolt fitting, M10-1.0 x 27.32 mm port thread
- Bleeder screw thread: M10-1.0
Build and materials
- Condition: remanufactured
- Caliper casting material: aluminum
- Piston material: aluminum
- Finish: powder coated, red
- Housing cast number: 20.A091.03
- Country of origin: Mexico
In the box

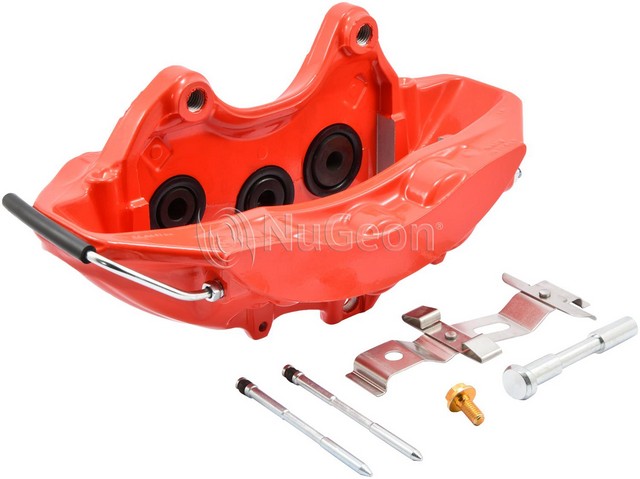

One remanufactured front left brake caliper with a bleeder screw, dust boots, crush washers and mounting hardware. The 2009-2016 Cadillac CTS takes one on this side, and the front right is a separate part. Brake pads, bracket, bracket mounting bolts, caliper and pad hardware, caliper slides, anti-squeal shims, wear sensors and a bleeder screw cap are not included; plan on new bracket mounting bolts.
Frequently Asked Questions
Is this the front left brake caliper for the 2009-2016 Cadillac CTS?
Yes. Nugeon 97R17400B is the front left caliper for the 2009-2016 Cadillac CTS, and this side takes one. The front right is a separate part.
Does this Nugeon caliper come with brake pads or a bracket?
No. Nugeon 97R17400B includes the bleeder screw, dust boots, crush washers and mounting hardware, but the pads, bracket, bracket bolts, slides and shims are not included.
What size are the pistons in this six-piston brake caliper?
This caliper's six aluminum pistons have outside diameters of 30 mm (1.181 in), 34 mm (1.339 in) and 38 mm (1.496 in).
What thread does the inlet on this disc brake caliper use?
The banjo bolt inlet has an M10-1.0 x 27.32 mm port thread, and the bleeder screw is M10-1.0. Crush washers come with the caliper.
Is the red finish on this caliper powder coated?
Yes. Nugeon 97R17400B has an aluminum caliper casting with a red powder-coated finish.
