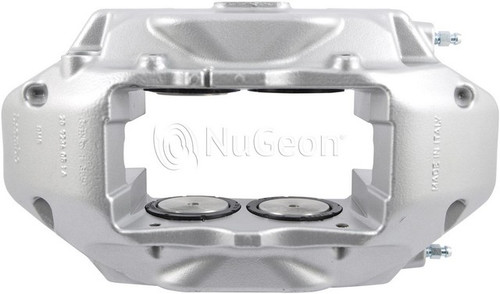

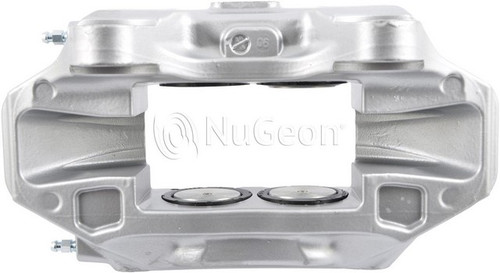

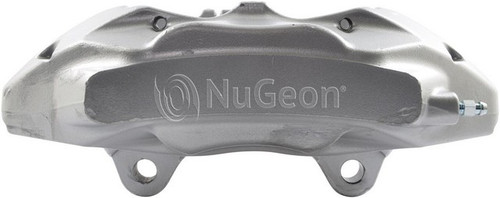

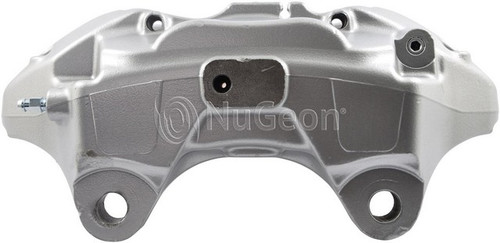

Nugeon 97S03349A front left brake caliper for the 2006-2017 Volkswagen Touareg squeezes the brake pads against the rotor to slow the wheel. This Nugeon brake caliper, also called a disc brake caliper, is remanufactured.
- Fixed-type caliper with four pistons
- Aluminum pistons, 46 mm (1.811 in) in diameter
- Aluminum caliper casting
- Powder-coated finish
Quick facts
- Part: Nugeon 97S03349A brake caliper
- Also called: disc brake caliper
- Fits: 2006-2017 Volkswagen Touareg
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
Pulling to one side under braking, uneven pad wear or brake fluid around the caliper can mean this part is worn, though a collapsed brake hose or a warped rotor can bring on similar signs, so find the cause before replacing it. Replace calipers as a pair on the same axle; this listing is one for the front left.
Fits
It fits the 2006-2017 Volkswagen Touareg, which takes one on the front left; the front right is ordered separately.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Piston quantity: 4
- Piston diameter: 46 mm (1.811 in)
- Bleeder screw thread: M8-1.25
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Fixed
- Casting material: Aluminum
- Piston material: Aluminum
- Finish: Powder coated
- Housing cast number: 20.9236.06
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with a bleeder screw, dust boots, crush washers and mounting hardware. Brake pads, bracket, bracket mounting bolts, mounting bolt, caliper slides, anti-squeal shims, wear sensors, caliper and pad hardware and a bleeder screw cap are not included. Plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is this the VW Touareg brake caliper for the front left of a 2006-2017 Volkswagen Touareg?
Yes. Nugeon 97S03349A is the front left caliper for the 2006-2017 Volkswagen Touareg. The front right side is a separate part.
Does this Nugeon caliper come with brake pads and a bracket?
No. Nugeon 97S03349A includes a bleeder screw, dust boots, crush washers and mounting hardware. Pads, bracket, slides, shims and wear sensors are not included.
How many pistons does this fixed brake caliper have, and what size are they?
It has four aluminum pistons with a 46 mm (1.811 in) piston diameter. The caliper itself is a fixed type with an aluminum casting.
What bleeder screw thread does the 97S03349A caliper use?
The bleeder screw thread is M8-1.25, and a bleeder screw comes with the caliper. The inlet port thread is M10-1.0.
How can I tell if a front left brake caliper is going bad?
Look for brake fluid around the caliper or uneven pad wear when the pads are changed, and notice any pulling to one side under braking. A shop can test the rest.
